Home / Agricultural Fan Motor, Permanent Split Capacitor, 1/4 HP, 115/230V AC, 1,700 Nameplate RPM

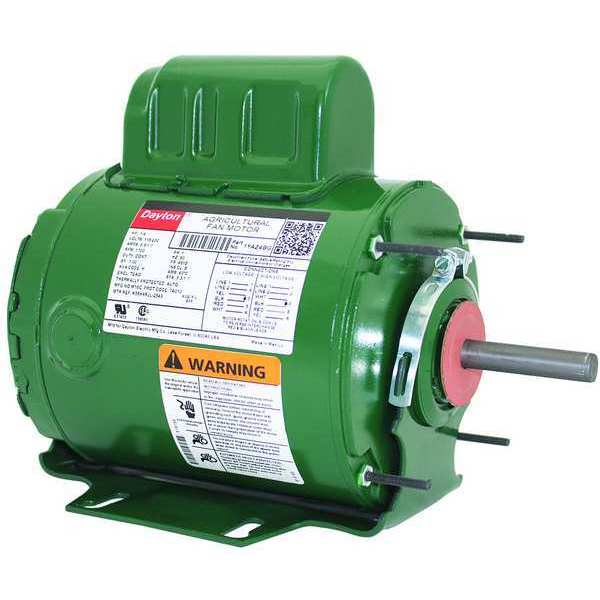

Agricultural Fan Motor, Permanent Split Capacitor, 1/4 HP, 115/230V AC, 1,700 Nameplate RPM

Agricultural Fan Motor, Permanent Split Capacitor, 1/4 HP, 115/230V AC, 1,700 Nameplate RPM

  • Dayton
  • Agricultural Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,700, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.3/1.7 A, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel

    graingerSKU: 1YAZ4, mscSKU: , zoro_no: G0423211, mongo_id: 65bbea1722d7a989a9995ca2

Web Price
$324.99 / each
Qty

Product Details

Farm Duty
Included
Mexico
Continuous Air Over
Continuous
Green
48YZ
Rolled steel
3.3/1.7 A
1/4
60 Hz
5/8 in Shaft Adapter, Extended Thru Bolts, Gasketed Capacitor Cover, Shaft Key, Shaft Slinger
B
Agricultural Fan Motor
7 1/2 in
40 Degrees C
40 Degrees C
Farm Duty
Ball
Permanent Split Capacitor
Totally Enclosed Air-Over
Rolled Steel
Horizontal
Cradle Base
1
Double-Flat
CW/CCW
Agricultural Fan
Auto
1,700
1
62.5 %
9 15/16 in
1
Single
4M251
1,601-1,700
1/2 in
2 7/16 in
CSA Certified (258501), UL Recognized (E37403)
115/230V AC
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
