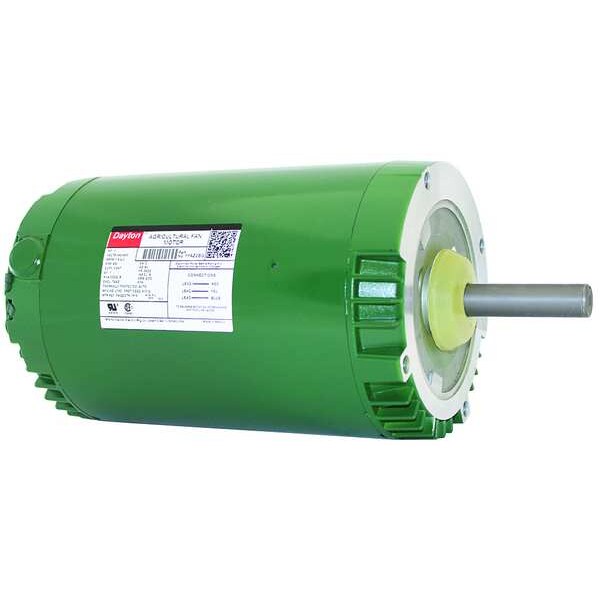

Agricultural Fan Motor, 3-Phase, 1 HP, 460V AC, 850 Nameplate RPM, 56CZ Frame

SKU
Brand Dayton
Categories
Description Agricultural Fan Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 850, No. of Speeds 1, Voltage 460V AC, Full Load Amps 1.9-2.0 A, 56CZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Face, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Finish Green, Shaft Dia. 3/4 in
graingerSKU: 1YAZ2, mscSKU: , zoro_no: G0700436, mongo_id: 65bbe89c22d7a989a990652a

Web Price

$1,168.74 / each

Qty

Product Details

Application Farm Duty

Country of Origin (subject to change) Mexico

Duty Continuous Air Over

Duty Cycle Continuous

Finish Green

Frame 56CZ

Frame Material Rolled steel

Full Load Amps 1.9-2.0 A

HP_ 1

Hz_ 60 Hz

Includes Shaft Key, Shaft Slinger, Gasketed Wiring Compartment Cover

Ins. Class B

Item - Farm Duty Motors Agricultural Fan Motor

Length Less Shaft 10 1/16 in

Max. Ambient Temp. 40 Degrees C

Max. Ambient Temperature 40 Degrees C

Motor Application Farm Duty

Motor Bearings Ball

Motor Design 3-Phase

Motor Enclosure Design Totally Enclosed Air-Over

Motor Frame Material Rolled Steel

Motor Mounting Position All Angle

Motor Mounting Type Face

Motor Service Factor 1

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Sub Application Agricultural Fan

Motor Thermal Protection Auto

Nameplate RPM 850

No. of Speeds 1

Nominal Efficiency 74 %

Overall Length 13 5/16 in

Package Quantity 1

Phase Three

Replacement For 3XK38

RPM Range 0-1,000

Shaft Dia. 3/4 in

Shaft Length 3 1/4 in

Standards CSA Certified (258501), UL Recognized (E47479)

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
