Home / AC Gearmotor, 320.0 in-lb Max. Torque, 58 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase

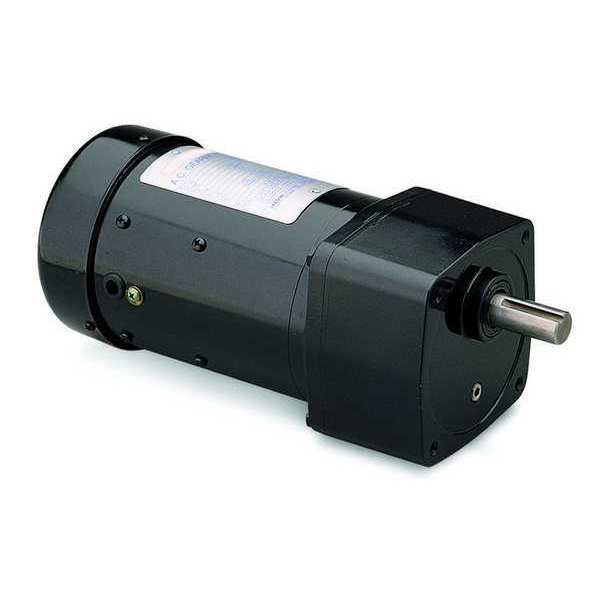

AC Gearmotor, 320.0 in-lb Max. Torque, 58 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase
AC Gearmotor, 320.0 in-lb Max. Torque, 58 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase

AC Gearmotor, 320.0 in-lb Max. Torque, 58 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase

  • Dayton
  • AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 58 RPM, Maximum Torque 320 in-lb, Overhung Load Capacity 300 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 230/460V AC, Gear Ratio 30:1, Brake Type None, Shaft Orientation Parallel, AGMA Gear Class Class 9, Application Inverter Duty

    graingerSKU: 6MK82, mscSKU: , zoro_no: G0301122, mongo_id: 65bbe94a22d7a989a99468db

Web Price
$1,098.74 / each
Qty

Product Details

Class 9
Inverter Duty
Needle Roller, Oversized on Output Shaft
Needle, Oversized on Output Shaft
None
United States
TEFC
50 Hz, 60 Hz
1.60/0.80
1.60/0.80 A
Die Cast Aluminum
Precision Machined and Hardened
30:1
AGMA Class 9
None
Totally Enclosed Fan-Cooled
All Angle
3
CW/CCW
Parallel
Single
AC Gearmotor
230/460V AC
AGMA Class 9, Precision Machined and Hardened
Die Cast Aluminum
Die Cast Aluminum
60/50 Hz
Conduit Box
0.33 hp
1/3 hp
11.88 in
Permanent Heavy Duty Gear Oil
40 Degrees C
320 in-lb
104 Degrees F
320 in-lb
Totally Enclosed Fan-Cooled
3-Phase
Any Position
All Position
Any Angle
58 RPM
58 RPM
1
230/460V AC
3/4 in
1 5/8 in
4.97 in
4.97 in
300 lb
300 ft-lb
1
Three
CW/CCW
51 to 75
Heavy Duty, Single Lip, Spring Loaded
Heavy Duty, Single Lip, Spring Loaded
3/4 in
1.63
Parallel
CSA Certified, UL Recognized
None
230/460
