Home / AC Gearmotor, 125.0 in-lb Max. Torque, 153 RPM Nameplate RPM, 115V AC Voltage, 1 Phase

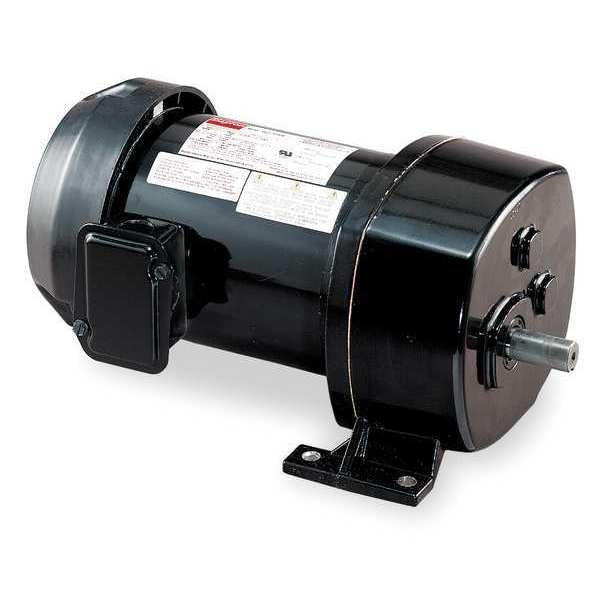

AC Gearmotor, 125.0 in-lb Max. Torque, 153 RPM Nameplate RPM, 115V AC Voltage, 1 Phase
AC Gearmotor, 125.0 in-lb Max. Torque, 153 RPM Nameplate RPM, 115V AC Voltage, 1 Phase
AC Gearmotor, 125.0 in-lb Max. Torque, 153 RPM Nameplate RPM, 115V AC Voltage, 1 Phase

AC Gearmotor, 125.0 in-lb Max. Torque, 153 RPM Nameplate RPM, 115V AC Voltage, 1 Phase

  • Dayton
  • AC Gearmotor, Number of Output Shafts 1, Motor Type Split-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 153 RPM, Maximum Torque 125 in-lb, Overhung Load Capacity 325 ft-lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated Yes, Gear Ratio 11:1, Brake Type None, Shaft Orientation Parallel, AGMA Gear Class Class 9

    graingerSKU: , mscSKU: , zoro_no: G2811182, mongo_id: 65bbe6173aaddbd5a900707b

Web Price
$1,289.99 / each
Qty

Product Details

Class 9
Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
Adaptable to 4Z447
None
United States
TEFC
60 Hz
5.5
5.5 A
Die Cast Aluminum
Hardened Steel
11:1
Helical (1st Stage), Spur (Subsequent Stages)
None
Totally Enclosed Fan-Cooled
All Angle
1
CW/CCW
Parallel
Single
AC Gearmotor
115V AC
1st Stage Helical, AGMA Class 9, Hardened Steel, Subsequent Stages Spur
Die Cast Aluminum
Die Cast Aluminum
60 Hz
0.33 hp
1/3 hp
Yes
11:1
1/8 in
3/16 in
12.31 in
Permanent Heavy Duty Gear Oil
40 Degrees C
125 in-lb
104 Degrees F
125 in-lb
Totally Enclosed Fan-Cooled
Split-Phase
2.5 in
7.13 in
Any Position
All Position
Any Angle
153 RPM
153 RPM
1
115V AC
3/4 in
3 in
1 1/2 in
6.63 in
8.13 in
325 lb
325 ft-lb
1
Single
CW/CCW
151 to 200
Lip Type on Input and Output Shaft
Lip Type on Input and Output Shaft
3/4 in
1.5
Parallel
CSA Certified, UL Recognized
None
115
