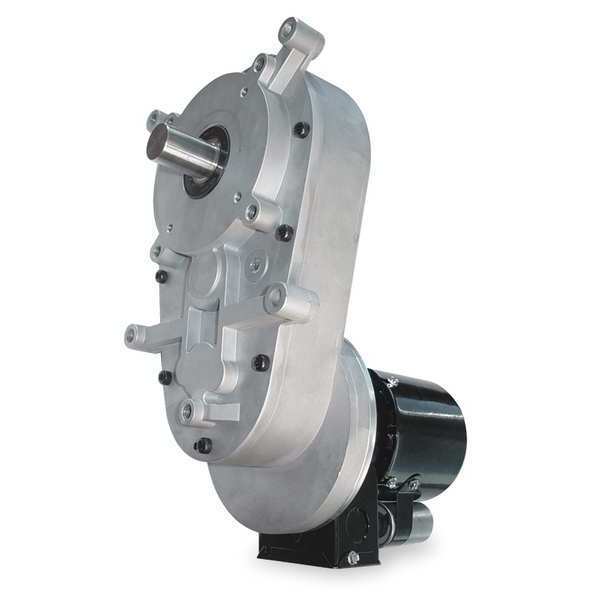

Home / AC Gearmotor, 1,900.0 in-lb Max. Torque, 2 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase
AC Gearmotor, 1,900.0 in-lb Max. Torque, 2 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase
AC Gearmotor, 1,900.0 in-lb Max. Torque, 2 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase
AC Gearmotor, 1,900.0 in-lb Max. Torque, 2 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase

AC Gearmotor, 1,900.0 in-lb Max. Torque, 2 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase

  • Dayton
  • AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 2 RPM, Maximum Torque 1,900 in-lb, Overhung Load Capacity 550 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 115/230V AC, Inverter Rated Yes, Gear Ratio 835:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class B

    graingerSKU: 1LPY7, mscSKU: , zoro_no: G0945795, mongo_id: 65bbea0522d7a989a998e63c

Web Price
$1,343.74 / each
Qty

Product Details

Ball and Needle on Case, Ball on Motor
Ball and Needle on Case, Ball on Motor
Adaptable to 5X400
None
Yes
United States
TEFC
Unpainted
50 Hz, 60 Hz
1.2/0.63
1.2/0.63 A
Die Cast Aluminum
Hardened Steel
835:1
Helical (1st Stage), Spur (Subsequent Stages)
None
Totally Enclosed Fan-Cooled
All Angle
1
CW/CCW
Parallel
Single
AC Gearmotor
115/230V AC
Hardened Steel; 1st Stage Helical, Subsequent Stages Spur
Die Cast Aluminum
Die Cast Aluminum
Unpainted
60/50 Hz
0.083 hp
1/12 hp
b
Yes
835:1
#806 Woodruff Key
#806 Woodruff Key
Woodruff
10.13 in
Grease Filled
40 Degrees C
1,900 in-lb
104 Degrees F
1,900 in-lb
Totally Enclosed Fan-Cooled
B
Permanent Split Capacitor
Any Position
All Position
Any Angle
2 RPM
2 RPM
1
115/230V AC
1 in
1 1/2 in
550 lb
550 ft-lb
1
Single
No
CW/CCW
1.7 RPM
0 to 15
Lip Type on Output Shaft
Lip Type on Output Shaft
Single Output
1 in
1.5 in_x000D_
Parallel
cRUus
None
115/230
