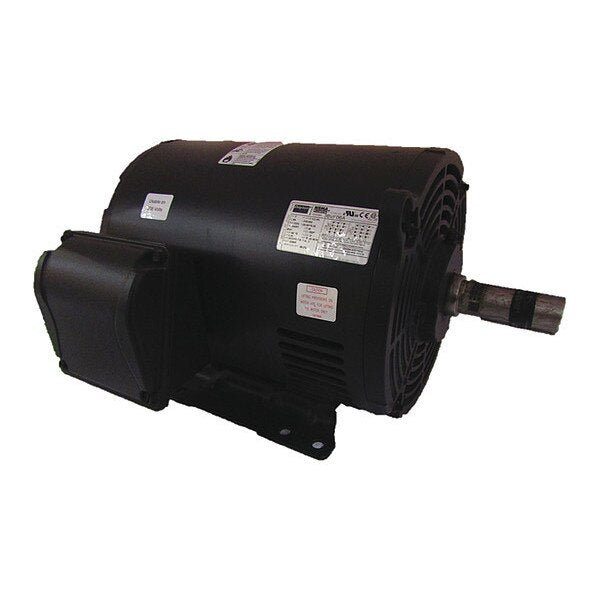

3-Phase General Purpose Motor, 7 1/2 HP, 254/6T Frame, 230/460V AC Voltage, 1,175 Nameplate RPM
3-Phase General Purpose Motor, 7 1/2 HP, 254/6T Frame, 230/460V AC Voltage, 1,175 Nameplate RPM
3-Phase General Purpose Motor, 7 1/2 HP, 254/6T Frame, 230/460V AC Voltage, 1,175 Nameplate RPM
3-Phase General Purpose Motor, 7 1/2 HP, 254/6T Frame, 230/460V AC Voltage, 1,175 Nameplate RPM
3-Phase General Purpose Motor, 7 1/2 HP, 254/6T Frame, 230/460V AC Voltage, 1,175 Nameplate RPM
3-Phase General Purpose Motor, 7 1/2 HP, 254/6T Frame, 230/460V AC Voltage, 1,175 Nameplate RPM

3-Phase General Purpose Motor, 7 1/2 HP, 254/6T Frame, 230/460V AC Voltage, 1,175 Nameplate RPM

  • Dayton
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 7 1/2 hp HP, Nameplate RPM 1,175, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 20.4/10.2 A, 254/6T Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed
Web Price
$1,743.74 / each
Qty

Product Details

No
CC029A
Mexico
Continuous
Continuous
2,15,56
254/6T
Rolled steel
20.4/10.2 A
NEMA Premium Rated
Product Contributes To Reducing Energy Consumption
7 1/2 hp
60 Hz
Conduit Box
F
Yes
16 1/2 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Rolled Steel
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
1,175
1
90.2 %
20 1/2 in
1
Three
1101-1200
1,101-1,200
1 5/8 in
4 in
CE, CSA, UL
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
