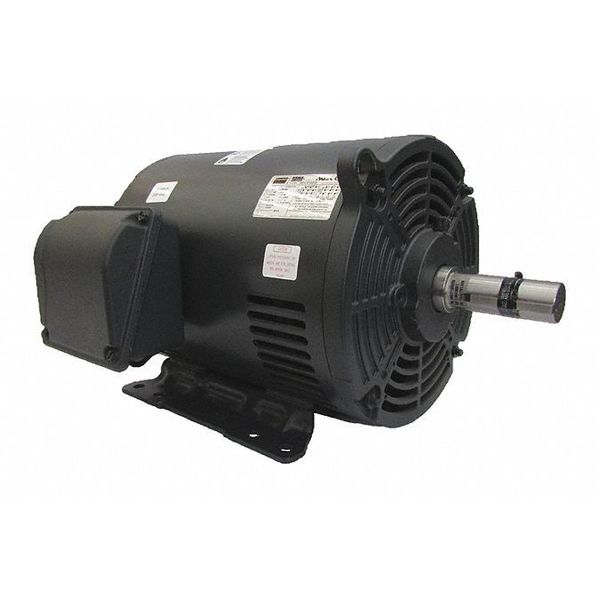

3-Phase General Purpose Motor, 5 HP, 254/6U Frame, 230/460V AC Voltage, 1,180 Nameplate RPM
3-Phase General Purpose Motor, 5 HP, 254/6U Frame, 230/460V AC Voltage, 1,180 Nameplate RPM
3-Phase General Purpose Motor, 5 HP, 254/6U Frame, 230/460V AC Voltage, 1,180 Nameplate RPM
3-Phase General Purpose Motor, 5 HP, 254/6U Frame, 230/460V AC Voltage, 1,180 Nameplate RPM
3-Phase General Purpose Motor, 5 HP, 254/6U Frame, 230/460V AC Voltage, 1,180 Nameplate RPM

3-Phase General Purpose Motor, 5 HP, 254/6U Frame, 230/460V AC Voltage, 1,180 Nameplate RPM

  • Dayton
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 5 hp HP, Nameplate RPM 1,180, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 14.6/7.3 A, 254/6U Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed

    graingerSKU: null, mscSKU: null, zoro_no: G1860665, mongo_id: 65bbe6243aaddbd5a900e569

Web Price
$1,856.24 / each
Qty

Product Details

No
CC029A
Mexico
Continuous
Continuous
2,15,53
254/6U
Rolled steel
14.6/7.3 A
NEMA Premium Rated
Product Contributes To Reducing Energy Consumption
5 hp
60 Hz
Conduit Box
F
Yes
16 1/2 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Rolled Steel
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
1,180
1
89.5 %
20 1/4 in
1
Three
1101-1200
1,101-1,200
1 3/8 in
3 3/4 in
CE, CSA, UL
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
