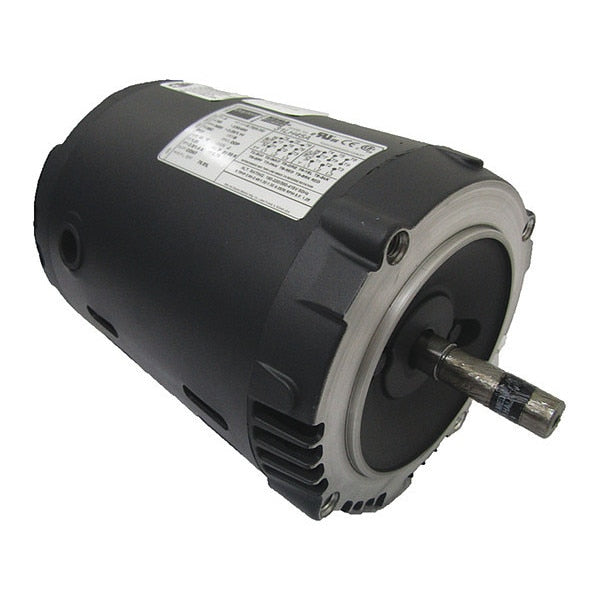

3-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 3,485 Nameplate RPM
3-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 3,485 Nameplate RPM
3-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 3,485 Nameplate RPM

3-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 3,485 Nameplate RPM

  • Dayton
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 3/4 hp HP, Nameplate RPM 3,485, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.3/1.1 A, 56C Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed

    graingerSKU: null, mscSKU: null, zoro_no: G9096193, mongo_id: 65bbe6f13aaddbd5a9064476

Web Price
$357.49 / each
Qty

Product Details

No
Mexico
Continuous
Continuous
15,16
56C
Rolled steel
2.3/1.1 A
NEMA Premium Rated
Product Contributes To Reducing Energy Consumption
3/4 hp
60 Hz
MIMI 8S470A & Shaft Key
F
Yes
7 1/8 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
Premium Efficient
Open Dripproof
Rolled Steel
Horizontal
Face
1.25
Keyed
CW/CCW
None
3,485
1
76.8 %
10 11/16 in
1
Three
3001-3600
3,001-3,600
5/8 in
1 7/8 in
CE, CSA, UL
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
