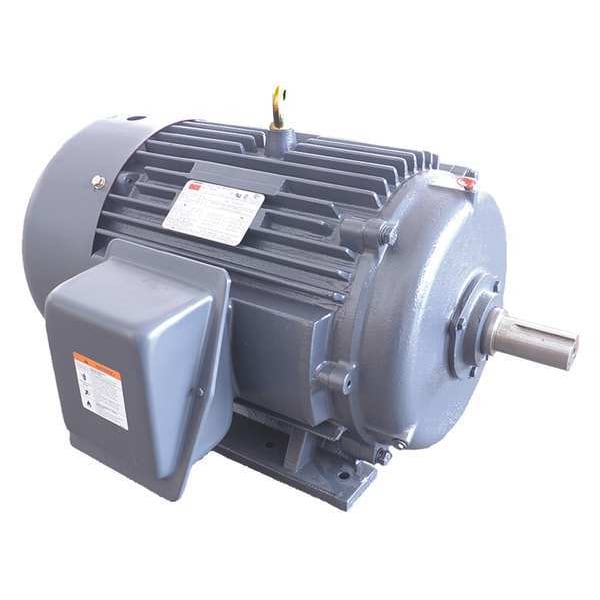

3-Phase General Purpose Motor, 25 HP, 284TS Frame, 230/460V AC Voltage, 3,550 Nameplate RPM

3-Phase General Purpose Motor, 25 HP, 284TS Frame, 230/460V AC Voltage, 3,550 Nameplate RPM

  • Dayton
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 25 hp HP, Nameplate RPM 3,550, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 58/29 A, 284TS Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed

    graingerSKU: 2MXW3, mscSKU: , zoro_no: G3130872, mongo_id: 65bbe90e22d7a989a99313d7

Web Price
$5,488.74 / each
Qty

Product Details

CC003A
Multiple
Continuous
Continuous
16
284TS
Cast Iron
58/29 A
NEMA Premium Rated
Product Contributes To Reducing Energy Consumption
25
60 Hz
F
Yes
25 9/16 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
3,550
1
91.7 %
25 7/16 in
1
Three
3001-3600
3,001-3,600
1 5/8 in
3 1/4 in
CE, CSA, UL
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
