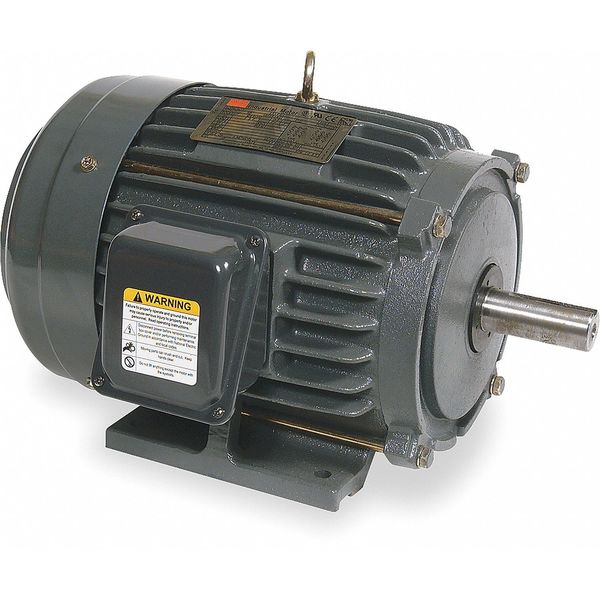

3-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 3,535 Nameplate RPM

3-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 3,535 Nameplate RPM

  • Dayton
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 20 hp HP, Nameplate RPM 3,535, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 47.3/23.6 A, 256T Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed

    graingerSKU: 2MXV9, mscSKU: , zoro_no: G1617621, mongo_id: 65bbe8219a749db822777456

Web Price
$4,058.74 / each
Qty

Product Details

CC003A
Multiple
Continuous
Continuous
16
256T
Cast Iron
47.3/23.6 A
NEMA Premium Rated
Product Contributes To Reducing Energy Consumption
20 hp
60 Hz
F
Yes
24 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
3,535
1
91 %
28 in
1
Three
3001-3600
3,001-3,600
1 5/8 in
4 in
CE, CSA, UL
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
