Home / 3-Phase General Purpose Motor, 1 HP, 143-5TC/56HCZ Frame, 230/460V AC Voltage, 1,155 Nameplate RPM

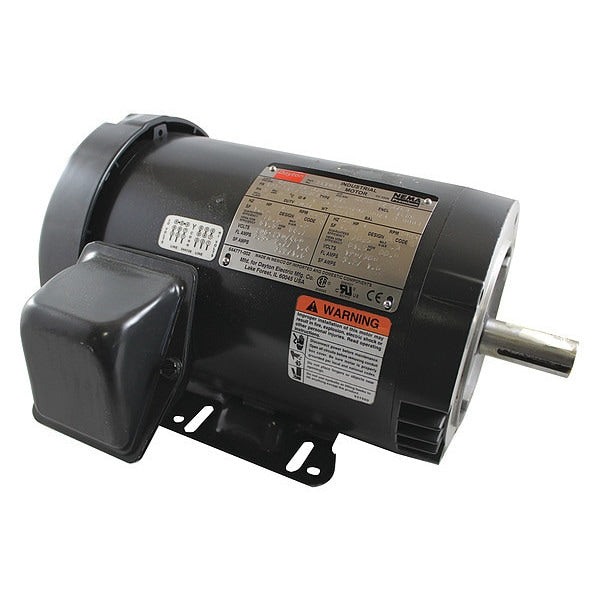

3-Phase General Purpose Motor, 1 HP, 143-5TC/56HCZ Frame, 230/460V AC Voltage, 1,155 Nameplate RPM

3-Phase General Purpose Motor, 1 HP, 143-5TC/56HCZ Frame, 230/460V AC Voltage, 1,155 Nameplate RPM

  • Dayton
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 1 hp HP, Nameplate RPM 1,155, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.5/1.8 A, 143-5TC/56HCZ Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face/Base, Motor Mounting Position All Angle, Inverter Rated Yes

    graingerSKU: 31TU33, mscSKU: , zoro_no: G8571412, mongo_id: 65bbe87822d7a989a98f7f0b

Web Price
$602.49 / each
Qty

Product Details

No
CC030A
Mexico
Continuous
Continuous
12,15
143-5TC/56HCZ
Rolled steel
3.5/1.8 A
NEMA Premium Rated
Product Contributes To Reducing Energy Consumption
1 hp
60 Hz
Dayton Integral & Fractional HP Motor Installation Guide
F
Yes
10 3/4 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Rolled Steel
All Angle
Face/Base
1.25
Keyed
CW/CCW
None
1,155
1
82.5 %
13 1/8 in
1
Three
1101-1200
1,101-1,200
7/8 in
2 1/8 in
CSA (258525), UL (E47479)
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
