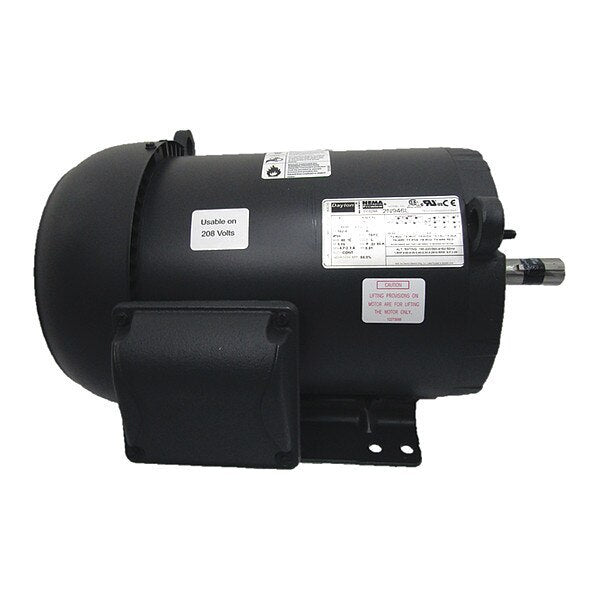

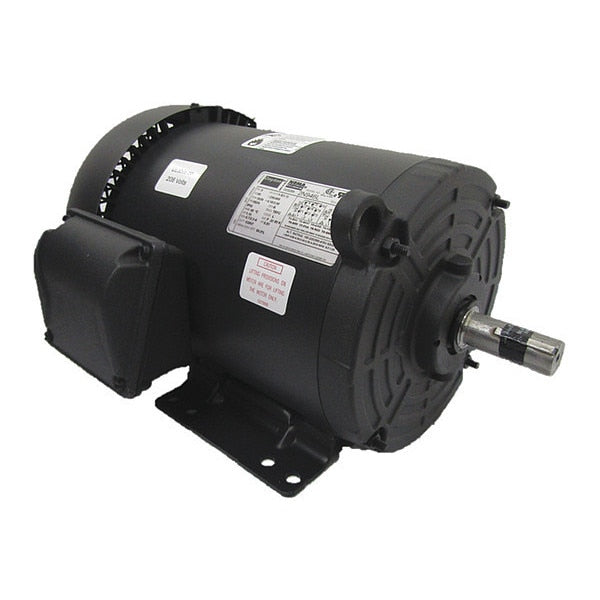

3-Phase General Purpose Motor, 1 1/2 HP, 182/4 Frame, 230/460V AC Voltage, 3,455 Nameplate RPM
3-Phase General Purpose Motor, 1 1/2 HP, 182/4 Frame, 230/460V AC Voltage, 3,455 Nameplate RPM
3-Phase General Purpose Motor, 1 1/2 HP, 182/4 Frame, 230/460V AC Voltage, 3,455 Nameplate RPM
3-Phase General Purpose Motor, 1 1/2 HP, 182/4 Frame, 230/460V AC Voltage, 3,455 Nameplate RPM
3-Phase General Purpose Motor, 1 1/2 HP, 182/4 Frame, 230/460V AC Voltage, 3,455 Nameplate RPM
3-Phase General Purpose Motor, 1 1/2 HP, 182/4 Frame, 230/460V AC Voltage, 3,455 Nameplate RPM

3-Phase General Purpose Motor, 1 1/2 HP, 182/4 Frame, 230/460V AC Voltage, 3,455 Nameplate RPM

  • Dayton
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 1 1/2 hp HP, Nameplate RPM 3,455, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.9/1.9 A, 182/4 Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Inverter Rated Yes, Motor Shaft Design Keyed, Motor Frame Material Steel

    graingerSKU: 2N946, mscSKU: , zoro_no: G1420334, mongo_id: 65bbe7133aaddbd5a90729d5

Web Price
$941.24 / each
Qty

Product Details

CC029A
Multiple
Continuous
Continuous
2,10,15
182/4
Steel
3.9/1.9 A
1 1/2 hp
60 Hz
F
Yes
13 9/16 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Steel
Rigid Base
1.15
Keyed
CW/CCW
None
3,455
1
84 %
15 1/4 in
1
Three
3001-3600
3,001-3,600
7/8 in
2 1/4 in
CE, CSA (264511), UL (E47479)
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
