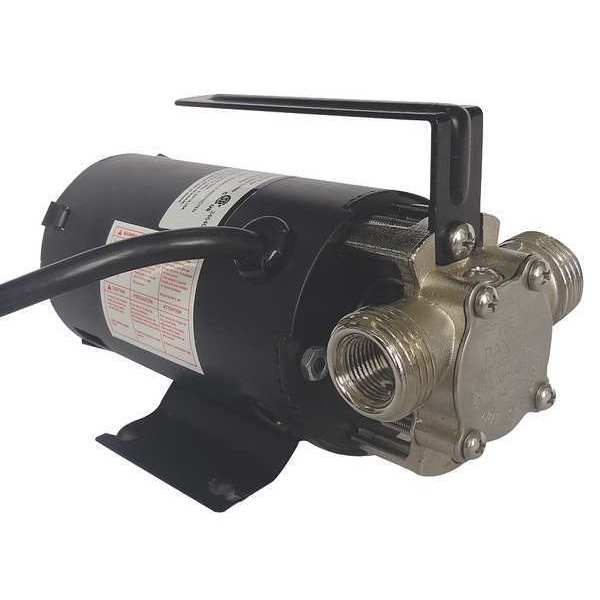

115 VAC Utility Pump

Home / 115 VAC Utility Pump

115 VAC Utility Pump

SKU
Brand Dayton
Categories Pumps
Description Utility Pump, Housing Material Stainless Steel, Horsepower - Maximum 1/10 hp, Nameplate Voltage 115V AC, Flow Rate @ 10 ft of Head - Maximum 4.4 gpm, Viscosity - Maximum Not Applicable, Feet of Head - Maximum 37.3 ft of head, Discharge Connection Size 3/4 in, Media Intake Connection Size 3/8 in, Media Intake Connection Type MGHT, Impeller Material Buna-N, Discharge Connection Type Hose, Cord Length 6 ft, Priming Self-Priming, Operating Pressure - Maximum 16.2 psi, Suction Lift - Maximum 7 ft
graingerSKU: 5UXL9, mscSKU: , zoro_no: G0534021, mongo_id: 65bbe99f22d7a989a996948a

Web Price

$233.74 / each

Qty

Product Details

Amps AC 1.6

Application Use to Empty Waterbeds, Drain Water Heaters or Aquariums, Pump Out Basement, Transfer Water to RV, Pump Boat Bilges, Pump Out Stock Tanks or Water Transfer. For Use With Nonflammable Liquids

Bearing Material Stainless Steel

Bearing Type Ball

Bearings Ball

Body Material Stainless steel

Compatible Motor Frame Not Applicable

Cord 6 ft

Cord Length 6 ft

Country of Origin (subject to change) China

Current 1.6 A

Discharge Connection Size 3/4 in

Discharge Connection Type Hose

Duty Intermittent

Feet of Head - Maximum 37.3 ft of head

Flow Rate @ 1 ft of Head - Maximum 5.7 gpm

Flow Rate @ 10 ft of Head - Maximum 4.4 gpm

Flow Rate @ 20 ft of Head - Maximum 3.1 gpm

Flow Rate @ 30 ft of Head - Maximum 1.4 gpm

Flow Rate @ 40 ft of Head - Maximum Not Applicable

Flow Rate @ 50 ft of Head - Maximum Not Applicable

Flow Rate @ 60 ft of Head - Maximum Not Applicable

For Media Type Water

Frequency 60 Hz

GPH of Water @ 1 Ft. of Head 360 gph

GPH of Water @ 10 Ft. of Head 300 gph

GPH of Water @ 20 Ft. of Head 270 gph

GPH of Water @ 30 Total Ft. of Head 198 gph

GPH of Water @ 40 Total Ft. of Head 90 gph

GPH of Water @ 5 Total Ft. of Head 342 gph

GPM of Water @ 10 Ft. of Head 4.43 gpm

GPM of Water @ 20 Ft. of Head 4.5 gpm

GPM of Water @ 30 Ft. of Head 2.3 gpm

GPM of Water @ 5 Ft. of Head 5.2 gpm

Height (In.) 4 1/2 in

Horsepower - Maximum 1/10 hp

Housing Material Stainless Steel

HP_ 1/10 hp

Impeller Buna-N

Impeller Diameter 1 3/8 in

Impeller Material Buna-N

Includes Gasket, Two Impellers

Inlet/Outlet (In.) 3/8 ID; 3/4 OD Garden Hose

Length (In.) 6 3/4 in

Max. Head (Ft.) 37.3 ft

Max. Liquid Temp. (F) 140 Degrees F

Max. Pressure (PSI) 20.9 psi

Max. Suction Lift (Ft.) 7 ft

Media Intake Connection Size 3/8 in

Media Intake Connection Type MGHT

Media Temperature - Maximum 140 Degrees F

Media Temperature - Minimum 40 Degrees F

Motor Enclosure Totally Enclosed Fan Cooled

Motor Mounting Type Horizontal

Motor Speed - Maximum 5,000 RPM

Motor Type Universal AC/DC

Nameplate Voltage 115V AC

Operating Pressure - Maximum 16.2 psi

Overall Height 4.5 in

Overall Length 6.8 in

Overall Width 4 in

Package Quantity 1

Phase Single

Priming Self-Priming

Pumps Up To (Ft.) 48.3 ft

RPM 5,000 RPM

Seal Material Buna-N

Seal Type Lip

Seals Buna N Radial Lip

Self-Priming Yes

Shaft Dia. (In.) 63/200 in

Shaft Material Stainless Steel

Shaft Outer Diameter 3/8 in

Suction Lift - Maximum 7 ft

Thermal Protection Automatic

Type Compact Flexible Impeller

Viscosity - Maximum Not Applicable

Voltage 115 V

Wetted Material Buna-N, Stainless Steel

Width (In.) 4 in
