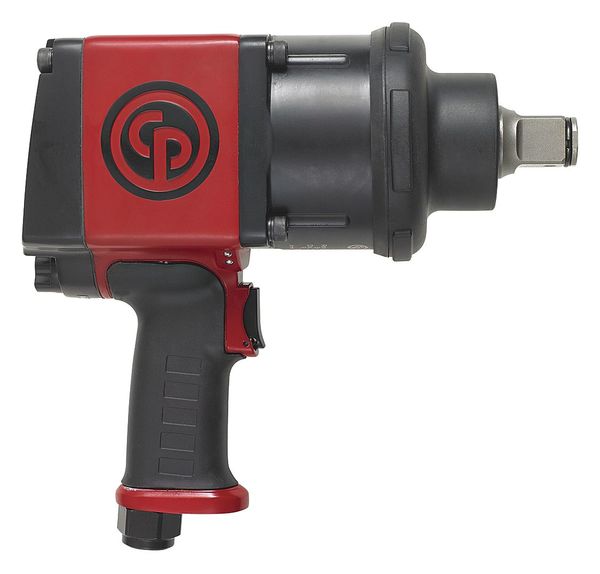

1" Pistol Grip Air Impact Wrench 1770 ft.-lb.

SKU
Brand Chicago Pneumatic
Categories
Description Impact Wrench, Power Source Air Powered, Air Consumption 33 cfm, Air Inlet 1/2 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 1/2 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Breakaway Torque 1,770 ft-lb, Fastening Torque 1,530 ft-lb, Free Speed 5,000 RPM, Impact Rated Yes, Impact Sound Level 104 dB, Impacts per Minute 750, Number of Speed Settings 3, Power to Weight Ratio 71.7 ft-lb/lb, Max. Bolt Capacity 1 1/2 in
graingerSKU: 38VJ42, mscSKU: , zoro_no: G9969443, mongo_id: 65bbe81522d7a989a98d7520

Web Price

$1,303.74 / each

Qty

Product Details

Air Consumption 33 cfm

Air Inlet 1/2 in NPT

Air Inlet Size - Air Tools 1/2 NPT

Air Pressure 90 psi

Anvil Standard

Anvil Length - Air Impacts 1.250

Anvil Type - Air Impacts Standard

Average CFM @ 15 Second Run Time 8.20

Blows per Minute 750

Blows per Minute - Air Tools 750

Body Style - Air Tools Pistol

Breakaway Torque 1,770 ft-lb

Built-In Light No

CFM @ Full Load 33.0

Clutch Style Rocking Dog

Country of Origin (subject to change) Taiwan, Province of China

Drive Size 1 in Square

Drive Size - Air Tools 1 Square

Drive Type Standard

Duty Industrial

Duty Cycle - Air Tools Industrial Duty

Duty Rating Industrial Duty

Exhaust Location Bottom

Fastening Torque 1,530 ft-lb

Features Handle Being Able To Rotate In 4 Positions For Ultimate Operator Comfort, Rubber Bumper Protecting Both Applications & Tool (Included), TPR Handle & Side Handle - Being Able To Rotate In 4 Positions

Free Speed 5,000 RPM

Handle Material Rubber

Handle Type Pistol Grip

Housing Material Aluminum/Steel

Impact Rated Yes

Impact Sound Level 104 dB

Impacts per Minute 750

Includes 2400 Nm to 1770 ft-lb Maximum Torque In Reverse, Angled Down Exhaust Blows Air Away From Work Place, Being Able to Rotate In 4 Positions, Handle Being Able to Rotate In 4 Positions for Ultimate Operator Comfort, Pin Less Closed Reinforced Rocking Dog Clutch Mechanism, PR Handle and Side Handle, Regulator Integrated In Forward/Reverse Knob with 3 Positions Power Setting In Both Directions, Rubber Bumper Protecting Both Applications and Tool (Included), Side Handle and Rubber Bumper, Socket Retainer Ring Combined with Hole Retainer

Item - Air Impact Wrenches Air Impact Wrench

Max. Air Pressure 90 psi

Max. Bolt Capacity 1 1/2 in

Max. Torque 1770 ft.-lb.

Min. Air Pressure 90 psi

Min. Hose Size 1/2 in

Number of Speed Settings 3

Overall Length 11 3/8 in

Package Quantity 1

Power Source Air Powered

Power to Weight Ratio 71.7 ft-lb/lb

Required Pressure 90 psi
