Home / 29PC 118Â° General Purpose Taper Length Drill Set Chicago-Latrobe 120 Steam Oxide HSS 1/16-1/2x1/64

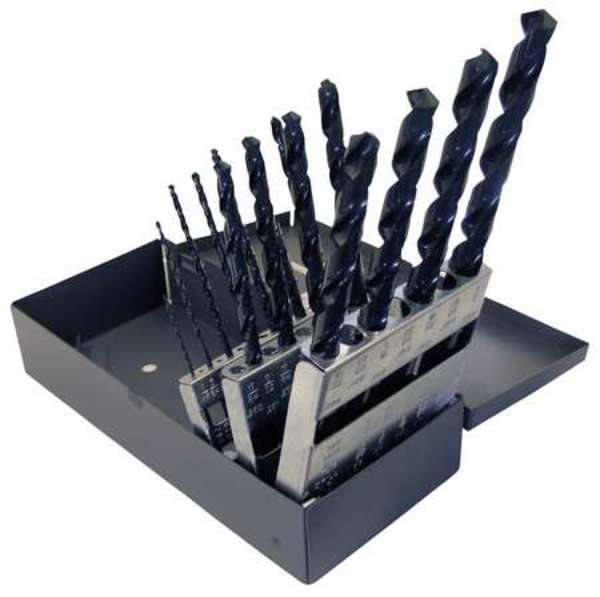

29PC 118Â° General Purpose Taper Length Drill Set Chicago-Latrobe 120 Steam Oxide HSS 1/16-1/2x1/64

SKU
Brand Chicago-Latrobe
Categories Adhesives, Epoxy & Sealants
Description Taper Length Drill Bit Set, Drill Bit Size 1/16 in to 1/2 in x 1/64 in, Drill Bit Point Angle 118 Degrees , Radial Point, High Speed Steel, Black Oxide
graingerSKU: 6WUC9, mscSKU: 81109324, zoro_no: G3713412, mongo_id: 65bbe81b22d7a989a98d9c6d

Web Price

$413.74 / each

Qty

Product Details

Coolant Fed Non-Coolant Through

Country of Origin (subject to change) United States

Cutting Direction Right Hand

Depth x Dia. Ratio 4xD

Depth:Dia. Ratio 4xD

Drill Bit Dimension Type Fractional Inch

Drill Bit Finish Black Oxide

Drill Bit Material High Speed Steel

Drill Bit Point Angle 118 Degrees

Drill Bit Point Type Radial Point

Drill Bit Size 1/16 in to 1/2 in x 1/64 in

Drill Bit Sizes Included 1/16 in to 1/2 in x 1/64 in

Drill Diameter Tolerance +0.0000 in /-0.0005 in - +0.0000 in /-0.0010 in

Drill Length Class Taper Length

Drill Point Length 0.0000 in

Finish - Machining Black Oxide

Flute Type Spiral

Grade General Purpose

Helix Angle 28 Degrees

List Number 120

Material - Machining High Speed Steel

Material Grade - Machining General Purpose

Maximum Drilling Depth Variable

Measurement System Fractional Inch

Number of Pieces 29

Package Quantity 1

Point type General Purpose

Primary Material Application Cast Iron, Steel

Primary Material Application ISO Code K, P

Series 120

Shank Type - Machining Straight

Sizes Included 1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 11/64, 3/16, 13/64, 7/32, 15/64, 1/4, 17/64, 9/32, 19/64, 5/16, 21/64, 11/32, 23/64, 3/8, 25/64, 13/32, 27/64, 7/16, 29/64, 15/32, 31/64, 1/2

Spiral Direction Right Hand

Standards Not Rated
