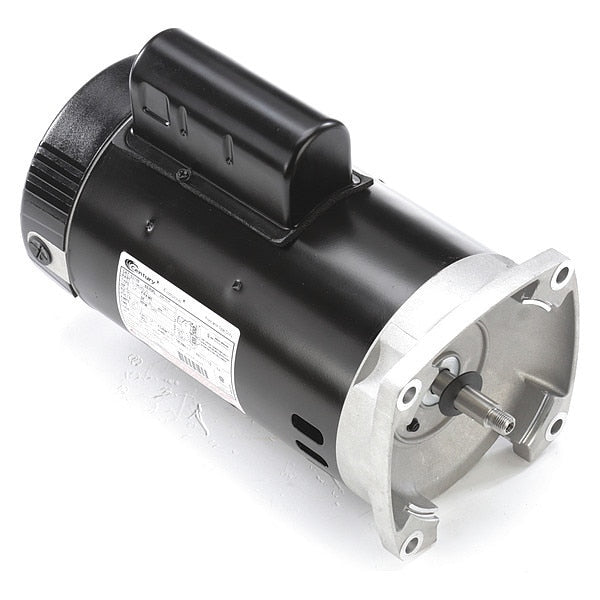

Pool Pump Motor, Permanent Split Capacitor, 2 HP, 56Y Frame, 3,450 Nam

Home / Pool Pump Motor, Permanent Split Capacitor, 2 HP, 56Y Frame, 3,450 Nameplate RPM

Pool Pump Motor, Permanent Split Capacitor, 2 HP, 56Y Frame, 3,450 Nameplate RPM

SKU
Brand Century
Categories Pumps
Description Pool Pump Motor, Bolt Circle Dia. 7 1/8 in, Duty Cycle Continuous, Finish Black, Frame 56Y, Hz 60, Full Load Amps 11.5, Height 9 in, HP 2 hp, Includes 30 MFD 370VAC 50/60Hz Capacitor, Ins. Class F, Length Less Shaft 12 1/2 in, Max. Ambient Temp. 50 Degrees C, Max. SF Amps 11.5, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
graingerSKU: 6UEV5, mscSKU: , zoro_no: G3528996, mongo_id: 65bbea0522d7a989a998e93d

Web Price

$611.24 / each

Qty

Product Details

Application Pool

Bolt Circle Dia. 7 1/8 in

Country of Origin (subject to change) Thailand

Duty Cycle Continuous

Finish Black

Frame 56Y

Full Load Amps 11.5

Height 9 in

HP_ 2 hp

Hz_ 60

Includes 30 MFD 370VAC 50/60Hz Capacitor

Ins. Class F

Length Less Shaft 12 1/2 in

Max. Ambient Temp. 50 Degrees C

Max. SF Amps 11.5

Motor Application Pump

Motor Bearings Ball

Motor Design Permanent Split Capacitor

Motor Efficiency Group Standard Efficient

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Face

Motor Service Factor 1.3

Motor Shaft Design Threaded

Motor Shaft Rotation CCWSE

Motor Sub Application Pool and Spa Pump

Motor Thermal Protection Auto

Nameplate RPM 3,450

No. of Speeds 1

Overall Length 13 3/8 in

Package Quantity 1

Phase Single

RPM Range 3,001-3,600

Shaft Threaded-1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH

Shaft Dia. 5/8 in

Shaft Dia. (In.) 5/8

Shaft Length 1 in

Shaft Material Stainless Steel

Standards UL (E44549)

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 33 lb
