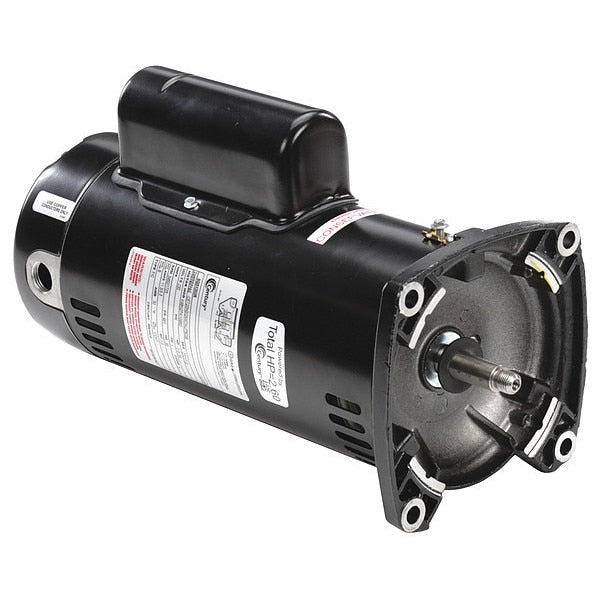

Pool Pump Motor, Permanent Split Capacitor, 2, 1/3 HP, 48Y Frame, 3,45

Home / Pool Pump Motor, Permanent Split Capacitor, 2, 1/3 HP, 48Y Frame, 3,450/1,725 Nameplate RPM

Pool Pump Motor, Permanent Split Capacitor, 2, 1/3 HP, 48Y Frame, 3,450/1,725 Nameplate RPM

SKU
Brand Century
Categories Pumps
Description Pool Pump Motor, Body Dia. 5.6 in, Duty Cycle Continuous, Frame 48Y, Hz 60, Full Load Amps 11.3/3.3, Height 5 5/8 in, HP 1/3 hp, 2 hp, Ins. Class B, Length Less Shaft 13 5/8 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
graingerSKU: 5PE18, mscSKU: , zoro_no: G2813587, mongo_id: 65bbea5822d7a989a99ab41a

Web Price

$918.74 / each

Qty

Product Details

Body Dia. 5.6 in

Country of Origin (subject to change) Mexico

Design Two Compartment

Duty Cycle Continuous

Frame 48Y

Full Load Amps 11.3/3.3

Height 5 5/8 in

HP_ 1/3 hp, 2 hp

Hz_ 60

Ins. Class B

Length Less Shaft 13 5/8 in

Max. Ambient Temp. 50 Degrees C

Motor Application Pump

Motor Bearings Ball

Motor Design Permanent Split Capacitor

Motor Efficiency Group Energy Efficient

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Face

Motor Service Factor 1.3

Motor Shaft Design Threaded

Motor Shaft Rotation CCWSE

Motor Sub Application Pool and Spa Pump

Motor Thermal Protection Auto

Nameplate RPM 3,450/1,725

No. of Speeds 2

Overall Length 14 1/2 in

Package Quantity 1

Phase Single

RPM Range 3,001-3,600

Shaft Threaded 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH

Shaft Dia. 5/8 in

Shaft Dia. (In.) 5/8

Shaft Length 1 in

Shaft Material Stainless Steel

Standards California Energy Commission Appliance Regulations 2008, UL 1081

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 43 lb
