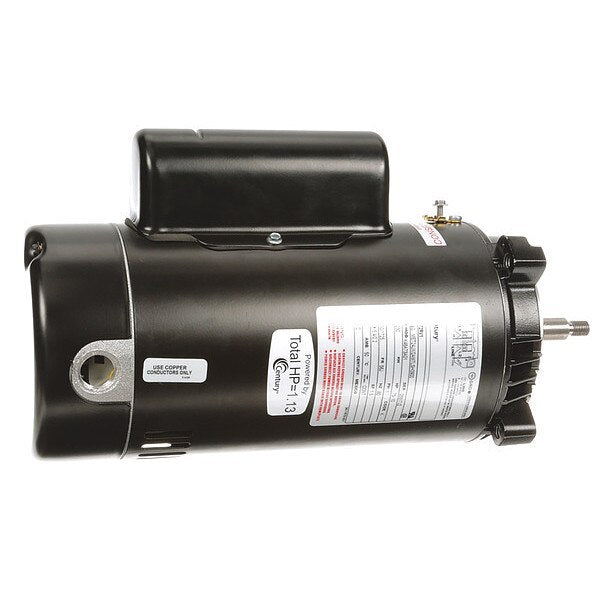

Pool Pump Motor, Capacitor-Start/Run, 3/4, 1/10 HP, 56J Frame, 3,450/1

Home / Pool Pump Motor, Capacitor-Start/Run, 3/4, 1/10 HP, 56J Frame, 3,450/1,725 Nameplate RPM

Pool Pump Motor, Capacitor-Start/Run, 3/4, 1/10 HP, 56J Frame, 3,450/1,725 Nameplate RPM

SKU
Brand Century
Categories Pumps
Description Pool Pump Motor, Conduit Box Position F3, Duty Cycle Continuous, Finish Unfinished, Frame 56J, Hz 60, Full Load Amps 5.4/2.2, HP 1/10 hp, 3/4 hp, Ins. Class B, Length Less Shaft 12 1/8 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
graingerSKU: 54YK67, mscSKU: , zoro_no: G8651542, mongo_id: 65bbe83a22d7a989a98e2757

Web Price

$457.49 / each

Qty

Product Details

Ambient Temperature 50 Degrees C

Conduit Box Position F3

Country of Origin (subject to change) Mexico

Duty Cycle Continuous

Finish Unfinished

Frame 56J

Full Load Amps 5.4/2.2

HP_ 1/10 hp, 3/4 hp

Hz_ 60

Ins. Class B

Length Less Shaft 12 1/8 in

Max. Ambient Temp. 50 Degrees C

Motor Application Pump

Motor Bearings Ball

Motor Design Capacitor-Start/Run

Motor Enclosure Design Open Dripproof

Motor Flange Material Aluminum

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Face

Motor Service Factor 1.5

Motor Shaft Design Threaded

Motor Shaft Rotation CCWSE

Motor Sub Application Pool and Spa Pump

Motor Thermal Protection Auto

Nameplate RPM 3,450/1,725

No. of Speeds 2

Overall Length 14 11/16 in

Package Quantity 1

Phase Single

RPM Range 3,001-3,600

Shaft Threaded

Shaft Dia. 5/8 in

Shaft Length 2 5/8 in

Shaft Material Stainless Steel

Standards California Energy Commission Appliance Regulations 2008, CSA, UL

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 28 lb
