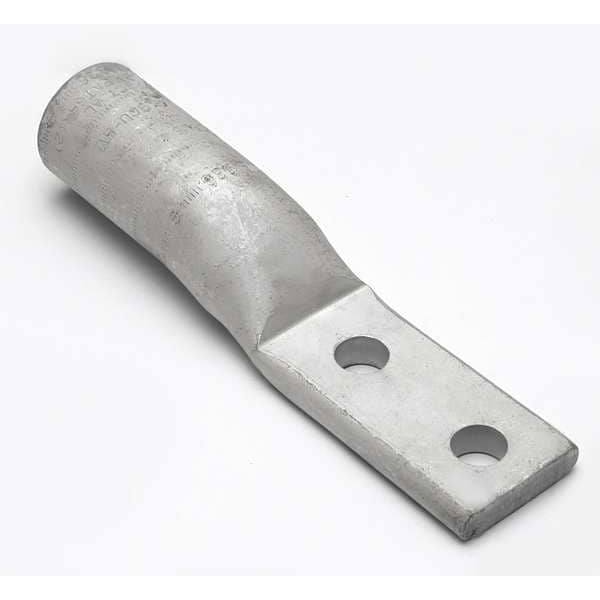

Two Hole Lug Compress Connector, 3/0 AWG

SKU
Brand Burndy
Categories
Description Two-Hole Lug Compression Connector, Barrel Size Standard, Color Code Ruby, Die Code 467, Tongue Angle Straight, Tongue Width 1.04 in, For Conductor Material Aluminum, Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 3/0 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Inspection Hole No, Hole Center to Center 1.75 in, Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
graingerSKU: 22C411, mscSKU: , zoro_no: G4653652, mongo_id: 65bbe86b9a749db822790424

Web Price

$41.99 / each

Product Details

Application For Aluminum & Copper Conductors

Barrel Length Long

Barrel Outside Diameter 0.76 in

Barrel Size Standard

Barrel Style Chamfered

Cable Size 3/0 AWG

Certification - CSA Approved Yes

Color Code Ruby

Conductor - AL Str Size 3/0 AWG

Conductor - AL Str Size Range 3/0 AWG

Conductor - Copper Str Size 3/0 AWG

Conductor - Copper Str Size Range 3/0 AWG

Conductor - Material ALUMINUM / COPPER

Conductor Size 3/0 AWG

Conductor Type CODE

Connector Type Standard Barrel

Contact Finish Tin

Country of Origin (subject to change) United States

Die Code 467

Die Index 467

Dimension - B Length fraction 1-5/16 in

Dimension - B Length inch 1.31 in

Dimension - Bolt Hole Size inch 0.52 in

Dimension - Bolt Size fraction 1 to 2

Dimension - Bolt Size inch 0.5

Dimension - D inch 3.12 in

Dimension - Hole Size fraction 1 to 2

Dimension - Hole Size inch 0.56 in

Dimension - Hole Size mm 14 mm

Dimension - L Length Overall mm 77 mm

Dimension - Length Overall inch 3.02 in

Dimension - N inch 0.63 in

Dimension - Outside Diameter inch 0.76 in

Dimension - Pad Width inch 1.04 in

Dimension - Strip Length inch 37257

Dimension - Stud Size fraction 1 to 2

Dimension - Stud Size inch 1 to 2

Dimension - Thread Size 1 to 2

Dimension - Z inch 0.74 in

Feature - Barrel Style Chamfered

Feature - Barrel Type Standard

Finish Type Tin-Plated

For Conductor Material Aluminum, Copper

For Stranded Aluminum Wire Size - Maximum 3/0 AWG

For Stranded Copper Wire Size - Maximum 3/0 AWG

For Stranded Copper Wire Size - Minimum 3/0 AWG

For Stud Size 1/2 in

For Wire Size 3/0 AWG

For Wire Type Stranded

Hole Center to Center 1.75 in

Hole Center to End 0.63 in

Hole Size 0.56 in

Industry Standard(s) UL468A-468B

Inspection Hole No

Item Type 3A

Length 5.02

Length (Straight Wireway) 5.02 in

Lug Compression Connector Type Two-Hole Lug Compression Connector

Material Tin-Plated Aluminum

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 35 kV AC

Overall Length 3.02 in

Overall Width 1.04 in

Package Quantity 1

Peep Hole No

Physical Attribute - Number of Holes 2

Physical Attribute - Tongue Angle Straight

Physical Attribute - Tongue Type Standard

Plate Material Electro Tin

Plated Y

Plating Type Tin - Electro Plated

Rating - KVA 35 kV

Rating - Minimum Voltage 600

RoHS Compliant Yes

Special Features Ensure the Transformer Feeders and Taps are Terminated Properly, Terminal to Bus Connections are Made Using Proper Hardware Resulting in True Torque to Pressure Performance, Compensates for Dissimilar Metal Expansion and Contraction, Dual Rated Compression Terminals

Standards CSA Certified, UL 486A-486B, UL Listed

Standards - Industry Standards Met UL468A-468B

Strip Length 1 1/2 in

Stud Size 1/2 in

Temperature Rating 194

Termination Style Crimp

Tongue Angle Straight

Tongue Length 1.37 in

Tongue Style Standard

Tongue Thickness 0.26 in

Tongue Width 1.04 in

Tongue Width Ranges 1.01 - 1.50 inches
