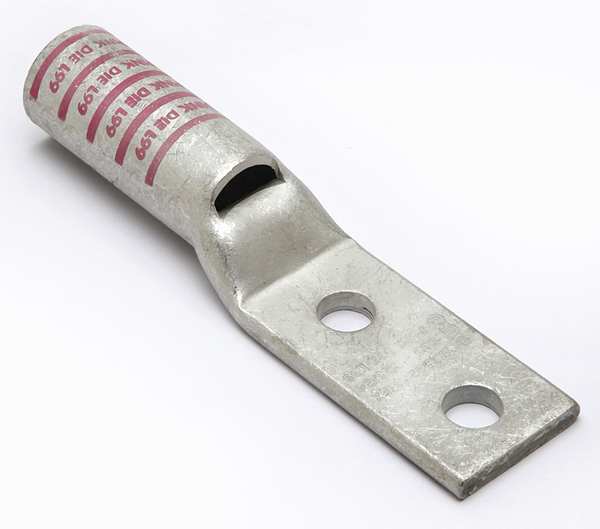

Two Hole Lug Compress Conct, 500 kcmil

SKU
Brand Burndy
Categories
Description Two-Hole Lug Compression Connector, Barrel Size Long, Color Code Pink, Die Code L99, Tongue Angle Straight, Tongue Width 1.62 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 550 kcmil, Inspection Hole Yes, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
graingerSKU: 22P091, mscSKU: , zoro_no: G4696282, mongo_id: 65bbea3b22d7a989a99a04d6

Web Price

$116.56 / each

Product Details

Application For Flex Conductors

Barrel Length Long

Barrel Outside Diameter 1.25 in

Barrel Size Long

Barrel Style Skived

Cable Size 500 kcmil

Certification - CSA Approved Yes

Color Code Pink

Conductor - Copper DLO Size 535.3 (1325/#24)

Conductor - Copper DLO Size Range 535 kcmil

Conductor - Copper Flex G Size 500

Conductor - Copper Flex G Size Range 550 kcmil

Conductor - Copper Flex H Size 500

Conductor - Copper Flex H Size Range 500 / 550 kcmil

Conductor - Copper Flex I Size 500

Conductor - Copper Flex I Size Range 500 / 550 kcmil

Conductor - Copper Flex K Size 500

Conductor - Copper Flex K Size Range 500 kcmil

Conductor - Copper Flex M Size 500

Conductor - Copper Str Size 500 kcmil

Conductor - Copper Str Size Range 500 kcmil

Conductor - Material COPPER

Conductor Size 500-550 KCMIL

Conductor Type FLEX

Connector Type Long Barrel

Contact Finish Tin

Country of Origin (subject to change) United States

Die Code L99

Die Index L99

Dimension - B Length fraction 2-13/16 in

Dimension - B Length inch 2.81 in

Dimension - Bolt Hole Size inch 0.53 in

Dimension - Bolt Size fraction 44993

Dimension - Bolt Size inch 0.5

Dimension - Diameter Min Size inch 3.02 in

Dimension - Hole Size fraction 1 to 2

Dimension - Hole Size inch 0.56

Dimension - Hole Size mm 14 mm

Dimension - L Length Overall mm 171 mm

Dimension - Length Overall inch 6.72 in

Dimension - Length Side B inch 6.72 in

Dimension - N inch 0.62 in

Dimension - Outside Diameter inch 1.25 in

Dimension - Pad Width inch 1.62 in

Dimension - Strip Length inch 39485

Dimension - Stud Size fraction 1 to 2

Dimension - Stud Size inch 1 to 2

Dimension - Z inch 0.65 in

Feature - Barrel Style Skived

Feature - Barrel Type Long

Finish Type Tin-Plated

For Conductor Material Copper

For Stranded Copper Wire Size - Maximum 550 kcmil

For Stranded Copper Wire Size - Minimum 500 kcmil

For Stud Size 1/2 in

For Wire Size 500 kcmil

For Wire Type Stranded

Hole Center to Center 1.75 in

Hole Center to End 0.62 in

Hole Size 0.53 in

Industry Standard(s) UL 486A-486B

Inspection Hole Yes

Length 6.72

Length (Straight Wireway) 6.72 in

Lug Compression Connector Type Two-Hole Lug Compression Connector

Material Copper

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 35 kV AC

Overall Length 6.72 in

Overall Width 1.63 in

Package Quantity 1

Peep Hole Yes

Physical Attribute - Number of Holes 2

Physical Attribute - Tongue Angle Straight

Plate Material Electro Tin

Plated Y

Plating Type Tin - Electro Plated

Rating - KVA 35 kV

Rating - Minimum Voltage 600

RoHS Compliant Yes

Special Features Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands During Insertion, Tin-Zinc Plated for Battery Connectors or Other Heavy Duty Equipment, to Reduce the Corrosion From Lead/Acid Batteries, Uninsulated Copper Compression Terminal, Tin-Zinc Plated, Up to 35 Kv

Standards CSA Certified, UL 486A-486B, UL Listed

Strip Length 2 7/8 in

Stud Size 1/2 in

Termination Style Crimp

Tongue Angle Straight

Tongue Length 1.27 in

Tongue Style Standard

Tongue Thickness 0.27 in

Tongue Width 1.62 in

Tongue Width Ranges 1.51 inches and wider

Trade Name HYLUGÃ¢ÂÂ¢

Type YAZ-2-NTFX, Long Barrel Narrow Tongue
