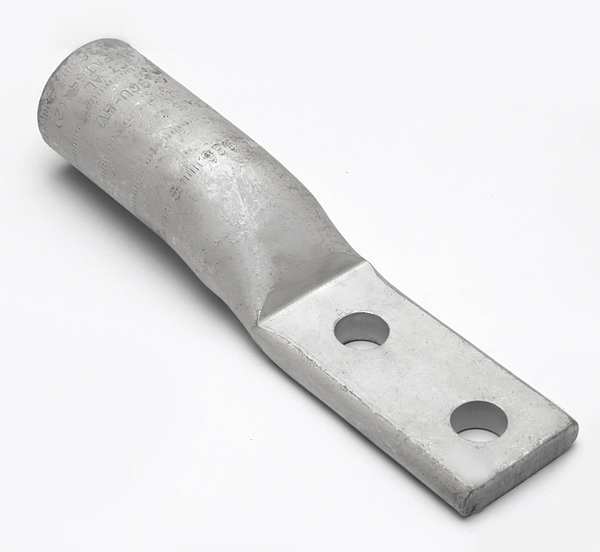

Two Hole Lug Compress Conct, 350 kcmil

SKU
Brand Burndy
Categories
Description Two-Hole Lug Compression Connector, Barrel Size Standard, Color Code Brown, Die Code 299, Tongue Angle Straight, Tongue Width 1.52 in, For Conductor Material Aluminum, Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 350 kcmil, For Stranded Copper Wire Size - Maximum 350 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
graingerSKU: 22C405, mscSKU: , zoro_no: G4659347, mongo_id: 65bbe7c49a749db822756dd1

Web Price

$48.94 / each

Product Details

Application For Aluminum & Copper Conductors

Barrel Length Long

Barrel Outside Diameter 1.11 in

Barrel Size Standard

Barrel Style Chamfered

Cable Size 350 kcmil

Certification - CSA Approved Yes

Color Code Brown

Conductor - AL Str Size 350 kcmil

Conductor - AL Str Size Range 350 kcmil

Conductor - Copper Str Size 350 kcmil

Conductor - Copper Str Size Range 350 kcmil

Conductor - Material ALUMINUM / COPPER

Conductor Size 350 KCMIL

Conductor Type CODE

Connector Type Standard Barrel

Contact Finish Tin

Country of Origin (subject to change) United States

Die Code 299

Die Index 299

Dimension - B Length fraction 1-7/8 in

Dimension - B Length inch 1.85 in

Dimension - Bolt Hole Size inch 0.52 in

Dimension - Bolt Size fraction 1 to 2

Dimension - Bolt Size inch 0.5

Dimension - D inch 3.11 in

Dimension - Hole Size fraction 1 to 2

Dimension - Hole Size inch 0.56 in

Dimension - Hole Size mm 14 mm

Dimension - L Length Overall mm 154 mm

Dimension - Length Overall inch 6.07 in

Dimension - N inch 0.63 in

Dimension - Outside Diameter inch 1.11 in

Dimension - Pad Width inch 1.52 in

Dimension - Strip Length inch 2.125

Dimension - Stud Size fraction 1 to 2

Dimension - Stud Size inch 1 to 2

Dimension - Thread Size 1 to 2

Dimension - Z inch 0.73 in

Feature - Barrel Style Chamfered

Feature - Barrel Type Standard

Finish Type Tin-Plated

For Conductor Material Aluminum, Copper

For Stranded Aluminum Wire Size - Maximum 350 kcmil

For Stranded Copper Wire Size - Maximum 350 kcmil

For Stranded Copper Wire Size - Minimum 350 kcmil

For Stud Size 1/2 in

For Wire Size 350 kcmil

For Wire Type Stranded

Hole Center to Center 1.75 in

Hole Center to End 0.63 in

Hole Size 0.56 in

Industry Standard(s) UL468A-468B

Inspection Hole No

Item Type 3A

Length 6.07

Length (Straight Wireway) 6.07 in

Lug Compression Connector Type Two-Hole Lug Compression Connector

Material Tin-Plated Aluminum

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 35 kV AC

Overall Length 6.07 in

Overall Width 1.52 in

Package Quantity 1

Peep Hole No

Physical Attribute - Number of Holes 2

Physical Attribute - Tongue Angle Straight

Physical Attribute - Tongue Type Standard

Plate Material Electro Tin

Plated Y

Plating Type Tin - Electro Plated

Rating - KVA 35 kV

Rating - Minimum Voltage 600

RoHS Compliant Yes

Special Features Ensure the Transformer Feeders and Taps are Terminated Properly, Terminal to Bus Connections are Made Using Proper Hardware Resulting in True Torque to Pressure Performance, Compensates for Dissimilar Metal Expansion and Contraction, Dual Rated Compression Terminals

Standards CSA Certified, UL 486A-486B, UL Listed

Standards - Industry Standards Met UL468A-468B

Strip Length 2 1/8 in

Stud Size 1/2 in

Temperature Rating 194

Termination Style Crimp

Tongue Angle Straight

Tongue Length 1.36 in

Tongue Style Standard

Tongue Thickness 0.39 in

Tongue Width 1.52 in

Tongue Width Ranges 1.51 inches and wider
