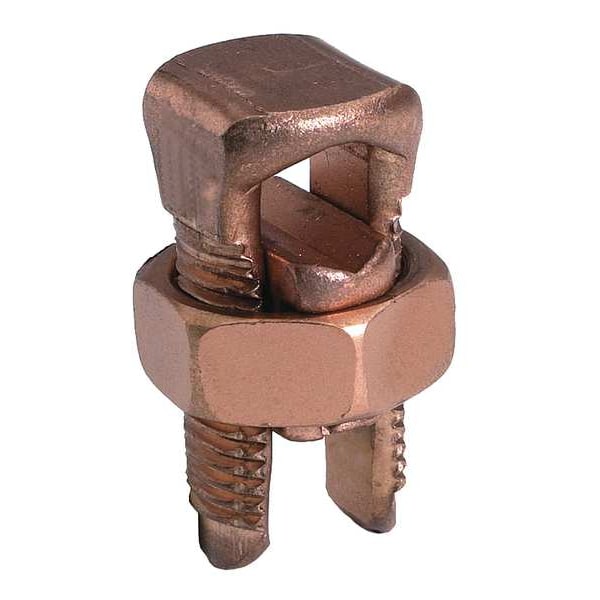

Split-Bolt Connector, 8 str to 6 sol

SKU
Brand Burndy
Categories
Description Split-Bolt Connector, Body Finish Unplated, Body Material Copper, For Conductor Material Copper, For Minimum Run Wire Size 8 AWG, For Maximum Run Wire Size 6 AWG, For Minimum Tap Wire Size 8 AWG, For Maximum Tap Wire Size 6 AWG, Head Style Square Head, Head Width 0.7 in, Hex Nut Size 0.62 in, Maximum Voltage 35,000 V, Torque 165 in-lb, Compatible Manufacturer Model Number SC4, Overall Length 0.98 in, Overall Width 0.62 in, RoHS Compliant Yes, Standards RoHS Compliant
graingerSKU: 22A945, mscSKU: , zoro_no: G4678974, mongo_id: 65bbe6c73aaddbd5a9052271

Web Price

$6.19 / each

Product Details

Application For Copper, Copperweld, Direct Burial Cables

Body Finish Unplated

Body Material Copper

Compatible Manufacturer Model Number SC4

Compatible with Product Type Split Bolt Covers

Compatible with Series Servit

Conductor - Copper Solid Run 6 AWG

Conductor - Copper Solid Run Range 6 AWG

Conductor - Copper Solid Tap 6 AWG

Conductor - Copper Str Run 8 AWG;7 AWG;6 AWG

Conductor - Copper Str Run Range 8 STR - 6 STR

Conductor - Copper Str Tap 16 AWG;14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG

Conductor - Copper Str Tap Range 8 STR - 6 STR

Conductor - CopperWeld C Solid Size 12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG

Conductor - CopperWeld Solid Size Range 12 AWG-6 AWG

Conductor - CopperWeld Str Tap 8 D AWG;7 A AWG;7 D AWG;6 A AWG

Conductor - CopperWeld Str Tap Range 8 D AWG-6 A AWG

Conductor Type CU C Solid-RunCU C Str-RunCU Weld C Solid-RunCU Weld C Str-RunCU C Str-TapCU Weld C Solid-TapCU Weld C Str-Tap

Connector Type Split Bolt

Connects Copper to Copper Wire

Country of Origin (subject to change) United States

Dimension - Cross Flats inch .62 in

Dimension - L Length Overall mm 25 mm

Dimension - Length Overall inch 0.98

Dimension - Width inch 0.70 in

Dimension - Width mm 18 mm

For Conductor Material Copper

For Maximum Run Wire Size 6 AWG

For Maximum Tap Wire Size 6 AWG

For Minimum Run Wire Size 8 AWG

For Minimum Tap Wire Size 8 AWG

For Run Wire Size 6 AWG

Head Style Square Head

Head Width 0.7 in

Hex Nut Size 0.62 in

Industry Standard(s) RUS

Installation Torque Recommended in-lb 165 LBS/in

Item Type 3A

Material Copper Alloy

Maximum Voltage 35,000 V

Min. Tap Conductor w/1 Max. Main (AWG) 16 str

Minimum Tap Conductor w/1 Maximum Main (AWG) 16 str

Overall Length 0.98 in

Overall Width 0.62 in

Package Quantity 1

Plating Type Unplated

Pressure Bar Material Copper

RoHS Compliant Yes

Special Features Compact, High Strength, High Copper Alloy SERVIT Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Season Cracking And Corrosion, The SERVIT Provides Maximum Pressure And Assures A Secure Connection On All Combinations Of Run And Tap Conductors

Standards RoHS Compliant

Standards - Industry Standards Met RUS

Torque 165 in-lb

Trade Name SERVITÃÂ®

Type KS-3

Width 0.62 in

Wire Range w/Equal Main and Tap (AWG) 8 str to 6 sol

Wire Size Range (Run) 8 AWG - 6 AWG
