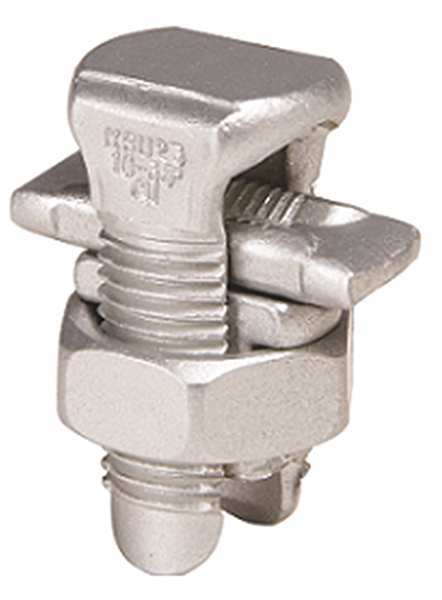

Split-Bolt Connector, 2 str to 1/0 str

SKU
Brand Burndy
Categories
Description Split-Bolt Connector, Body Finish Tin Plated, Body Material Copper, For Conductor Material Aluminum, Copper, Steel, For Minimum Run Wire Size 2 AWG, For Maximum Run Wire Size 1/0 AWG, For Minimum Tap Wire Size 10 AWG, For Maximum Tap Wire Size 1/0 AWG, Head Style Square Head, Hex Nut Size 0.93 in, Maximum Voltage 35,000 V, Torque 385 in-lb, Compatible Manufacturer Model Number SC2/0, Overall Length 1.77 in, Overall Width 0.7 in, RoHS Compliant Yes
graingerSKU: 22A950, mscSKU: , zoro_no: G4666444, mongo_id: 65bbea5e22d7a989a99aea7d

Web Price

$18.36 / each

Product Details

Application For All Combinations Of Copper, Aluminum, ACSR, AAAC, 5005, And Steel

Body Finish Tin Plated

Body Material Copper

Compatible Manufacturer Model Number SC2/0

Compatible with Product Type Split Bolt Covers

Compatible with Series Servit

Conductor - AAAC 5005 Run 77.47 (7) kcmil

Conductor - AAAC 5005 Run Range 77.47 (7) kcmil

Conductor - AAAC 5005 Tap 30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil

Conductor - AAAC 5005 Tap Range 30.58 (7) kcmil-77.47 (7) kcmil

Conductor - AAAC 6201 Run 77.47 (7) kcmil

Conductor - AAAC 6201 Run Range 77.47 (7) kcmil

Conductor - AAAC 6201 Tap 30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil

Conductor - AAAC 6201 Tap Range 30.58 (7) kcmil-77.47 (7) kcmil

Conductor - ACSR Str Run 3 (6/1) Swallow AWG;2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG;1 (6/1) Robin AWG

Conductor - ACSR Str Run Range 3 AWG - 1AWG

Conductor - ACSR Str Tap 6 (6/1) Turkey AWG;5 (6/1) Thrush AWG;4 (6/1) Swan AWG;4 (7/1) Swanate AWG;3 (6/1) Swallow AWG;2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG;1 (6/1) Robin AWG

Conductor - ACSR Str Tap Range 6 AWG - 1 AWG

Conductor - AL Str Run 2 AWG;1 AWG;1/0 AWG

Conductor - AL Str Run Range 2 AWG - 1/0 AWG

Conductor - AL Str Tap 10 AWG;8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG

Conductor - AL Str Tap Range 10 AWG - 1/0 AWG

Conductor - Copper Solid Run 22

Conductor - Copper Solid Run Range 22

Conductor - Copper Solid Tap 22

Conductor - Copper Solid Tap Range 22

Conductor - Copper Str Run 2 AWG;1 AWG;1/0

Conductor - Copper Str Run Range 2 AWG - 1/0 AWG

Conductor - Copper Str Tap 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0

Conductor - Copper Str Tap Range 10 AWG - 1/0 AWG

Conductor - Galvanized Steel Str Size 3/8 (7) in

Conductor - Galvanized Steel Str Size Range 3/8 (7) in

Conductor Type CU C Solid-RunCU C Str-RunAL C Str-RunAAAC C 5005-RunAAAC C 6201-RunACSR C Str-RunCU C Solid-TapCU C Str-TapAL C Str-TapAAAC C 5005-TapAAAC C 6201-TapACSR C Str-TapGAL Steel C Str-Size

Connector Type Split Bolt

Connects Copper to Aluminum Wire

Country of Origin (subject to change) United States

Dimension - Cross Flats inch .93 in

Dimension - L Length Overall mm 45 mm

Dimension - Length Overall inch 1.77

Dimension - Width inch 0.70 in

Dimension - Width mm 18 mm

For Conductor Material Aluminum, Copper, Steel

For Maximum Run Wire Size 1/0 AWG

For Maximum Tap Wire Size 1/0 AWG

For Minimum Run Wire Size 2 AWG

For Minimum Tap Wire Size 10 AWG

For Run Wire Size 1/0 AWG, 1 AWG

Head Style Square Head

Hex Nut Size 0.93 in

Installation Torque Recommended in-lb 385

Material Copper Alloy

Maximum Voltage 35,000 V

Min. Tap Conductor w/1 Max. Main (AWG) 10 str

Minimum Tap Conductor w/1 Maximum Main (AWG) 10 str

Overall Length 1.77 in

Overall Width 0.7 in

Package Quantity 1

Plated Yes

Plating Type Tin Plated

Pressure Bar Material Copper

RoHS Compliant Yes

Special Features High Strength Copper Alloy SERVIT With Spacer, Spacer Separates Dissimilar Conductors And Provides Long Contact Length That Prevents High Pressure Point Contacts Between Run And Tap Conductors

Standards CSA Certified, UL Listed 486A Copper Only

Torque 385 in-lb

Trade Name SERVITÃÂ®

Type KSU, Universal

UL Listed Yes

Width 0.70 in

Wire Range w/Equal Main and Tap (AWG) 2 str to 1/0 str

Wire Size Range (Run) 2 AWG - 1/0 AWG
