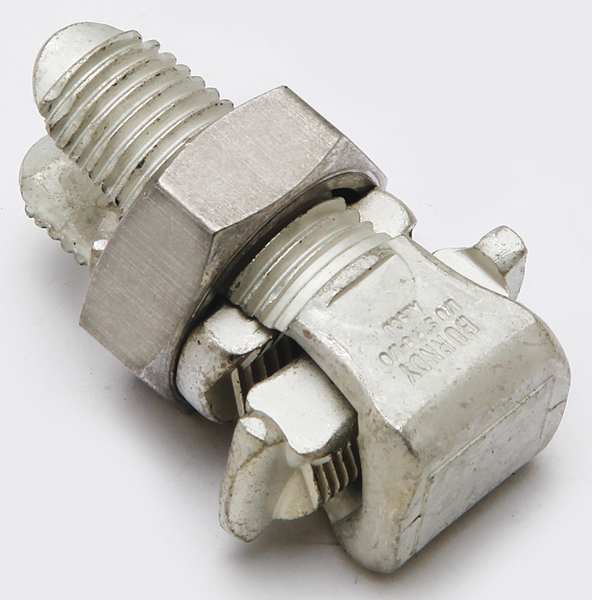

Split-Bolt Connector, 2 str to 1/0 str

SKU
Brand Burndy
Categories
Description Split-Bolt Connector, Body Finish Tin Plated, Body Material Aluminum, For Conductor Material Aluminum, Copper, For Minimum Run Wire Size 2 AWG, For Maximum Run Wire Size 1/0 AWG, For Minimum Tap Wire Size 8 AWG, For Maximum Tap Wire Size 1/0 AWG, Head Style Square Head, Hex Nut Size 1 in, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35,000 V, Torque 385 in-lb, Compatible Manufacturer Model Number SC2/0, Overall Length 1.92 in, Overall Width 0.75 in, RoHS Compliant Yes
graingerSKU: 22C168, mscSKU: , zoro_no: G4678396, mongo_id: 65bbe5913aaddbd5a9fd0f61

Web Price

$20.86 / each

Product Details

Application For All Combinations of Aluminum to Aluminum, Aluminum to Copper and Copper to Copper, Aluminum Alloy Tin Plated

Body Finish Tin Plated

Body Material Aluminum

Certification - CSA Approved Yes

Compatible Manufacturer Model Number SC2/0

Compatible with Product Type Split Bolt Covers

Compatible with Series Servit

Conductor - AL Str Run 2 AWG;1 AWG;1/0 AWG

Conductor - AL Str Run Range 2 AWG-1/0 AWG

Conductor - AL Str Tap 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG

Conductor - AL Str Tap Range 8 AWG-1/0 AWG

Conductor - Copper Solid Tap 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG

Conductor - Copper Solid Tap Range 8 AWG-1/0 AWG

Conductor - Copper Str Run 2 AWG;1 AWG;1/0

Conductor - Copper Str Run Range 2 AWG-1/0

Conductor - Copper Str Tap 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0

Conductor - Copper Str Tap Range 8 AWG-1/0

Conductor Size 8-1/0 AWG

Conductor Type AL C Str-RunCU C Str-RunCU C Solid-RunAL C Str-TapCU C Str-TapCU C Solid-Tap

Connector Type Split Bolt

Connects Copper to Aluminum Wire

Country of Origin (subject to change) United States

Dimension - B Length fraction 1-1/3 in

Dimension - B Length inch 1.33 in

Dimension - Bolt Size inch 0.75 in

Dimension - Cross Flats inch 1.00 in

Dimension - Height fraction 6/7 in

Dimension - Height inch 0.85 in

Dimension - L Length Overall mm 49 mm

Dimension - Length Overall inch 1.92 in

Dimension - Width inch 0.75 in

Dimension - Width mm 19 mm

For Conductor Material Aluminum, Copper

For Maximum Run Wire Size 1/0 AWG

For Maximum Tap Wire Size 1/0 AWG

For Minimum Run Wire Size 2 AWG

For Minimum Tap Wire Size 8 AWG

For Run Wire Size 1/0 AWG, 1 AWG

Hardware Type 3/4-16 UNF

Head Style Square Head

Hex Nut Size 1 in

Industry Standard(s) UL468A-468B

Installation Torque Recommended in-lb 385 LBS/in

Material Tin-Plated Aluminum

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 35,000 V

Min. Tap Conductor w/1 Max. Main (AWG) 8 sol

Minimum Tap Conductor w/1 Maximum Main (AWG) 8 sol

Overall Length 1.92 in

Overall Width 0.75 in

Package Quantity 1

Plated Yes

Plating Type Tin

Pressure Bar Material Copper

Rating - Minimum Voltage 600

RoHS Compliant Yes

Special Features Facilitates Piercing The Aluminum Conductor Surface Oxides, No Scratch Brushing Required, No Oxide Inhibitor Required, Orients The Conductor, Provides Maximum Pressure And Assures A Secure Connection Of Run And Tap Conductors

Standards CSA Certified, UL 468A, UL 486B, UL 486D

Standards - Industry Standards Met UL468A-468B

Temperature Rating 194

Torque 385 in-lb

Trade Name TRITAPÃ¢ÂÂ¢ SERVITÃÂ®

Type KSA

UL Listed Yes

UL Standards UL 486A-486B

Wire Range w/Equal Main and Tap (AWG) 2 str to 1/0 str

Wire Size Range (Run) 2 AWG - 1/0 AWG
