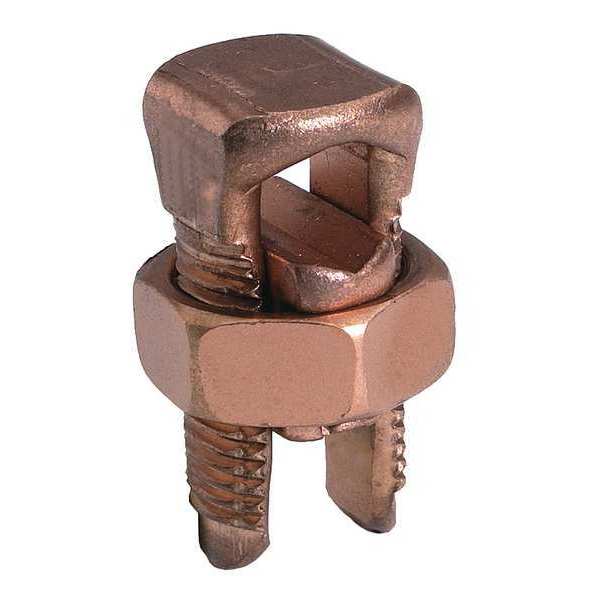

Split-Bolt Connector, 12 str to 10 str

SKU
Brand Burndy
Categories
Description Split-Bolt Connector, Body Finish Unplated, Body Material Copper, For Minimum Run Wire Size 12 AWG, For Maximum Run Wire Size 10 AWG, For Minimum Tap Wire Size 16 AWG, For Maximum Tap Wire Size 10 AWG, Head Style Square Head, Hex Nut Size 0.5 in, Maximum Voltage 35,000 V, Torque 80 in-lb, Overall Length 0.85 in, Overall Width 0.38 in, RoHS Compliant Yes, Standards CSA Certified, UL 486A, UL 486B, UL 486D, Connects Copper to Copper Wire, Minimum Tap Conductor w/1 Maximum Main (AWG) 16 str
graingerSKU: 22A936, mscSKU: , zoro_no: G4668903, mongo_id: 65bbe81a9a749db8227737ed

Web Price

$8.94 / each

Product Details

Application For Direct Burial Cables

Body Finish Unplated

Body Material Copper

Certification - UL Listed Direct Burial Yes

Conductor - Copper Solid Run 8 AWG

Conductor - Copper Solid Run Range 10 AWG-12 AWG

Conductor - Copper Solid Tap 8 AWG

Conductor - Copper Solid Tap Range 16 AWG-10 AWG

Conductor - Copper Str Run 12 AWG;10 AWG

Conductor - Copper Str Run Range 12 STR. 10 STR.

Conductor - Copper Str Tap 16 AWG;14 AWG;12 AWG;10 AWG

Conductor - Copper Str Tap Range 16 STR.

Conductor - CopperWeld Solid Run #10

Conductor - CopperWeld Solid Run Range #10

Conductor - CopperWeld Solid Tap #10

Conductor - CopperWeld Solid Tap Range #10

Conductor Type CU C Solid-RunCU C Str-RunCU Weld C Solid-RunCU Weld C Str-RunCU C Str-TapCU Weld C Solid-TapCU Weld C Str-TapCU C Solid-Tap

Connector Type Split Bolt

Connects Copper to Copper Wire

Country of Origin (subject to change) United States

Dimension - B Length fraction 9/20 in

Dimension - B Length inch .45 in

Dimension - Cross Flats inch .50 in

Dimension - L Length Overall mm 22 mm

Dimension - Length Overall inch 0.85

Dimension - Width fraction 19/50 in

Dimension - Width inch 0.38 in

Dimension - Width mm 10 mm

For Maximum Run Wire Size 10 AWG

For Maximum Tap Wire Size 10 AWG

For Minimum Run Wire Size 12 AWG

For Minimum Tap Wire Size 16 AWG

For Run Wire Size 10 AWG

For Wire Size 12 AWG

Head Style Square Head

Hex Nut Size 0.5 in

Industry Standard(s) UL 486AUL486B

Installation Torque Recommended in-lb 80 in

Material Copper Alloy

Maximum Voltage 35,000 V

Min. Tap Conductor w/1 Max. Main (AWG) 16 str

Minimum Tap Conductor w/1 Maximum Main (AWG) 16 str

Overall Length 0.85 in

Overall Width 0.38 in

Package Quantity 1

Plating Type Unplated

Pressure Bar Material Copper

RoHS Compliant Yes

Special Features Compact, High Strength, High Copper Alloy SERVIT Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Season Cracking And Corrosion, The SERVIT Provides Maximum Pressure And Assures A Secure Connection On All Combinations Of Run And Tap Conductors

Standards CSA Certified, UL 486A, UL 486B, UL 486D

Standards - Industry Standards Met UL 486AUL486B

Torque 80 in-lb

Trade Name SERVITÃÂ®

Type KS

UL Listed Yes

UL Standards UL 486A-486B

Width 0.38 in

Wire Range w/Equal Main and Tap (AWG) 12 str to 10 str

Wire Size Range (Run) 12 AWG - 10 AWG
