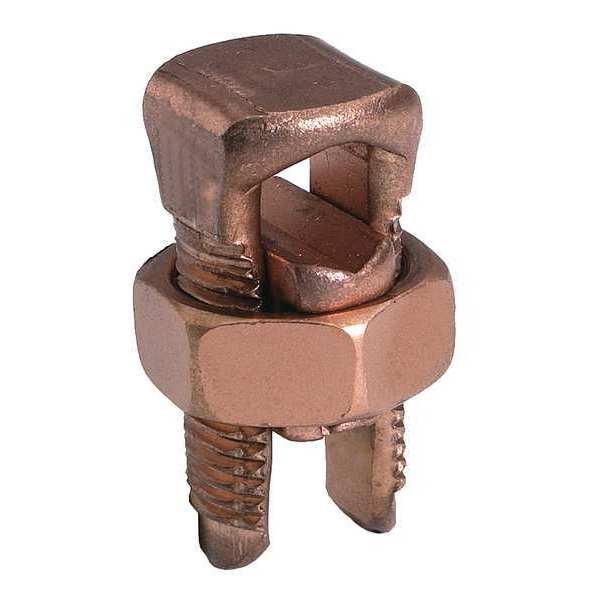

Split-Bolt Connector, 1/0 str to 350kcmil

SKU
Brand Burndy
Categories
Description Split-Bolt Connector, Body Finish Unplated, Body Material Copper, For Minimum Run Wire Size 1/0 AWG, For Maximum Run Wire Size 350 kcmil, For Minimum Tap Wire Size 1/0 AWG, For Maximum Tap Wire Size 350 kcmil, Head Style Square Head, Hex Nut Size 1.7 in, Maximum Voltage 35,000 V, Torque 650 in-lb, Overall Length 2.6 in, Overall Width 1.41 in, Standards CSA Certified, UL 486A, UL 486B, UL 486D, Connects Copper to Copper Wire, Minimum Tap Conductor w/1 Maximum Main (AWG) 1/0 str
graingerSKU: 22A942, mscSKU: , zoro_no: G4682115, mongo_id: 65bbe94f22d7a989a994a1cd

Web Price

$70.56 / each

Product Details

Application For Direct Burial Cables

Body Finish Unplated

Body Material Copper

Certification - UL Listed Direct Burial Yes

Conductor - Copper Solid Run 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil

Conductor - Copper Solid Run Range 1/0 -350 kcmil

Conductor - Copper Solid Tap 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil

Conductor - Copper Solid Tap Range 1/0 -350 kcmil

Conductor - Copper Str Run 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil

Conductor - Copper Str Run Range 1/0 STR - 350 KCMIL

Conductor - Copper Str Tap 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil

Conductor - Copper Str Tap Range 1/0 STR - 350 KCMIL

Conductor - CopperWeld Str Run 19 #8

Conductor - CopperWeld Str Run Range 19 #8

Conductor - CopperWeld Str Tap 19 #8

Conductor - CopperWeld Str Tap Range 19 #8

Conductor - Rebar Size 5

Conductor - Rebar Size Range 5

Conductor Type CU C Solid-RunCU C Str-RunCU Weld C Solid-RunCU Weld C Str-RunCU C Str-TapCU Weld C Solid-TapCU Weld C Str-TapCU C Solid-Tap

Connector Type Split Bolt

Connects Copper to Copper Wire

Country of Origin (subject to change) United States

Dimension - B Length fraction 1-1/4 in

Dimension - B Length inch 1.25 in

Dimension - Cross Flats inch 1.70 in

Dimension - L Length Overall mm 64 mm

Dimension - Length Overall inch 2.6

Dimension - Width fraction 1-41/100 in

Dimension - Width inch 1.41 in

Dimension - Width mm 36 mm

For Maximum Run Wire Size 350 kcmil

For Maximum Tap Wire Size 350 kcmil

For Minimum Run Wire Size 1/0 AWG

For Minimum Tap Wire Size 1/0 AWG

For Run Wire Size 1/0 AWG, 2/0 AWG, 250 kcmil, 300 kcmil, 3/0 AWG, 350 kcmil

Head style Square Head

Hex Nut Size 1.7 in

Industry Standard(s) UL 486AUL486B

Installation Torque Recommended in-lb 650 in

Material Copper Alloy

Maximum Voltage 35,000 V

Min. Tap Conductor w/1 Max. Main (AWG) 1/0 str

Minimum Tap Conductor w/1 Maximum Main (AWG) 1/0 str

Overall Length 2.6 in

Overall Width 1.41 in

Package Quantity 1

Plating Type Unplated

Pressure Bar Material Copper

Special Features Compact, High Strength, High Copper Alloy SERVIT Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Season Cracking And Corrosion, The SERVIT Provides Maximum Pressure And Assures A Secure Connection On All Combinations Of Run And Tap Conductors

Standards CSA Certified, UL 486A, UL 486B, UL 486D

Standards - Industry Standards Met UL 486AUL486B

Torque 650 in-lb

Trade Name SERVITÃÂ®

Type KS

UL Listed Yes

UL Standards UL 486A-486B

Width 1.41 in

Wire Range w/Equal Main and Tap (AWG) 1/0 str to 350 kcmil

Wire Size Range (Run) 1/0 AWG - 350 kcmil
