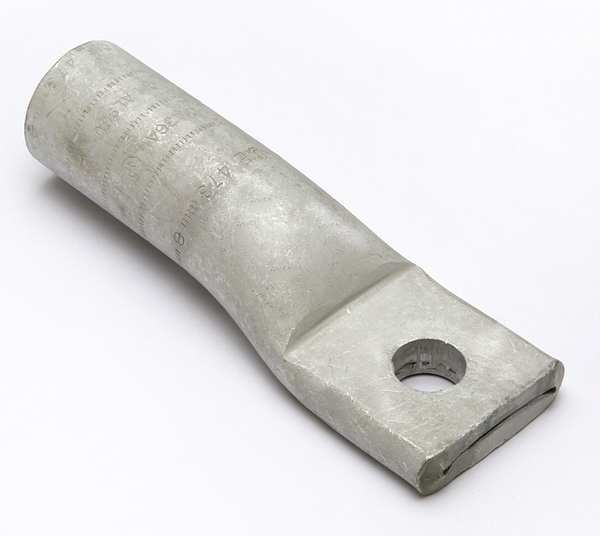

One Hole Lug Compress Connector, 2/0 AWG

SKU
Brand Burndy
Categories
Description One-Hole Lug Compression Connector, Barrel Size Standard, Color Code Olive, Die Code 297, Tongue Angle Straight, Tongue Width 0.67 in, For Conductor Material Aluminum, Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 2/0 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
graingerSKU: 22C416, mscSKU: , zoro_no: G4670005, mongo_id: 65bbea1022d7a989a9991ea3

Web Price

$25.94 / each

Product Details

Application For Aluminum And Copper Conductors

Barrel Length Short

Barrel Outside Diameter 0.67 in

Barrel Size Standard

Barrel Style Chamfered

Cable Size 2/0 AWG

Certification - CSA Approved Yes

Color Code Olive

Conductor - AL Str Size 2/0 AWG

Conductor - AL Str Size Range 2/0 AWG

Conductor - Copper Str Size 2/0 AWG

Conductor - Copper Str Size Range 2/0 AWG

Conductor - Material ALUMINUM / COPPER

Conductor Size 2/0 AWG

Conductor Type CODE

Connector Type Short Barrel

Contact Finish Tin

Country of Origin (subject to change) United States

Die Code 297

Die Index 297

Dimension - B Length fraction 1-1/8 in

Dimension - B Length inch 1.11 in

Dimension - Bolt Hole Size inch 0.39 in

Dimension - Bolt Size fraction 44993

Dimension - Bolt Size inch 0.38

Dimension - D inch 1.89 in

Dimension - Hole Size fraction 2023-03-08

Dimension - Hole Size inch 0.44 in

Dimension - Hole Size mm 11 mm

Dimension - L Length Overall mm 71 mm

Dimension - Length Overall inch 2.79 in

Dimension - N inch 0.44 in

Dimension - Outside Diameter inch 0.67 in

Dimension - Pad Width inch 0.67 in

Dimension - Strip Length inch 39450

Dimension - Stud Size fraction 2023-03-08

Dimension - Stud Size inch 44993

Dimension - Thread Size 44993

Dimension - Z inch 0.74 in

Feature - Barrel Style Chamfered

Feature - Barrel Type Standard

Finish Type Tin-Plated

For Conductor Material Aluminum, Copper

For Stranded Aluminum Wire Size - Maximum 2/0 AWG

For Stranded Copper Wire Size - Maximum 2/0 AWG

For Stranded Copper Wire Size - Minimum 2/0 AWG

For Stud Size 3/8 in

For Wire Size 2/0 AWG

For Wire Type Solid, Stranded

Hole Center to Center Not Applicable

Hole Center to End 0.44 in

Hole Size 0.44 in

Industry Standard(s) UL468A-468B

Inspection Hole No

Item Type 3A

Length 2.79

Length (Straight Wireway) 2.79 in

Material Tin-Plated Aluminum

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 35 kV AC

Overall Length 2.79 in

Overall Width 0.67 in

Package Quantity 1

Peep Hole No

Physical Attribute - Number of Holes 1

Physical Attribute - Tongue Angle Straight

Physical Attribute - Tongue Type Standard

Plate Material Electro Tin

Plated Y

Plating Type Tin - Electro Plated

Rating - KVA 35 kV

Rating - Minimum Voltage 600

RoHS Compliant Yes

Special Features Dual-Rated and Designed for Use on Both Aluminum and Copper Conductors, Durable Long Lasting Corrosion Resistance, High-Conductivity, Low Resistance and Ductility

Standards CSA Certified, UL 486A-486B, UL Listed

Standards - Industry Standards Met UL468A-468B

Strip Length 1 3/8 in

Stud Size 3/8 in

Temperature Rating 194

Termination Style Crimp

Tongue Angle Straight

Tongue Length 1.18 in

Tongue Style Standard

Tongue Thickness 0.24 in

Tongue Width 0.67 in

Tongue Width Ranges 0.51 - 0.75 inches
