Home / One Hole Lug Compress Conct, 6 AWG, PK10

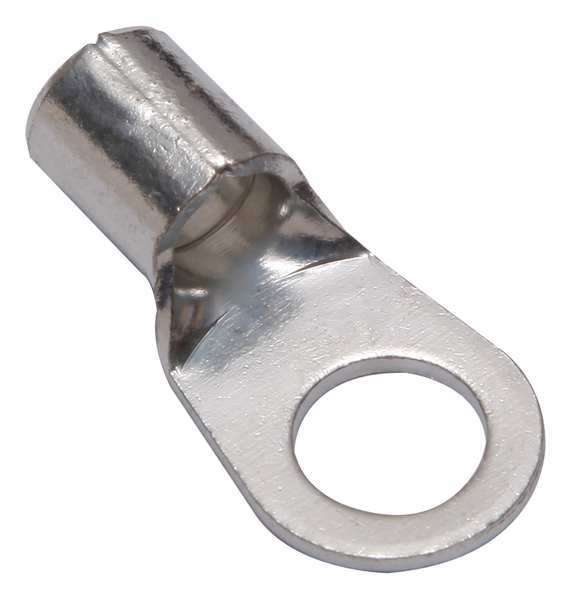

One Hole Lug Compress Conct, 6 AWG, PK10

SKU
Brand Burndy
Categories
Description Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 6 AWG, Maximum Wire Size 6 AWG, Termination Style Crimp, Tongue Width 0.55 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.4 in, Barrel Outside Diameter 0.32 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P158, 22P219, 22P221
graingerSKU: 30XT36, mscSKU: , zoro_no: G6124465, mongo_id: 65bbee11526e052139aead75

Web Price

$20.49 / each

Product Details

Application The YAD uninsulated OEM lug terminal is constructed of electrolytic copper

Barrel Length 0.4 in

Barrel Outside Diameter 0.32 in

Barrel Size Long

Barrel Style Brazed

Cable Size 6 AWG

Color Code None

Compatible Manufacturer Model Number Y1MRTC

Compatible with Product Type Code, Flex Cable

Compatible with Series PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT

Conductor - Copper Str Size 6 AWG

Conductor Size 6 AWG

Conductor Type CU C Str-SizeCU C Flex-Size

Connection Material Tin Plater Copper

Connector Type YAD

Contact Finish Tin

Contact Material Copper

Country of Origin (subject to change) Taiwan, Province of China

Dimension - B Length inch 0.40 in

Dimension - Bolt Size fraction 2023-05-16

Dimension - Hole Size inch 0.33 in

Dimension - L Length Overall mm 29 mm

Dimension - Length Overall inch 1.14 in

Dimension - Outside Diameter inch 0.32 in

Dimension - Pad Width inch 0.55 in

Dimension - Strip Length inch 45123

Dimension - Stud Size inch 45062

Feature - Barrel Type Long

For Wire Size 6 AWG

For Wire Sizes 6 AWG to 6 AWG

Hole Center to End 0.870

Hole Diameter 0.33 in

Hole Spacing 0.47 in

Industry Standard(s) UL467

Insulation None

Insulation Color Bare

Insulation Coverage None

Insulation Material None

Insulation Type Non-Insulated

Item Type 3B

Length 1.14

Material Electrolytic Copper

Max. Temp. 302 Degrees F

Max. Voltage 600 V

Maximum Operating Temperature 302 Degrees F

Maximum Voltage 600 V

Maximum Wire Size 6 AWG

Minimum Operating Temperature 302 Degrees F

Minimum Wire Size 6 AWG

Overall Length 1.14 in

Package Quantity 10

Peep Hole No

Physical Attribute - Tongue Type Ring

Plate Material Tin

Plated Y

Plating Type Tin

Ring Width Ranges 0.51 - 0.75 inches

RoHS Compliant No

Seam Brazed

Seam Style Brazed

Special Features Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections

Standards UL 467

Standards - Industry Standards Met UL467

Strip Length 1/2 in

Stud Size 5/16 in

Terminal Shape Ring Tongue

Termination Crimp Termination Only

Termination Style Crimp

Tongue Length 0.74 in

Tongue Style Ring

Tongue Thickness 0.05 in

Tongue Width 0.55 in

Tongue Width - Wire Connector 0.55 in
