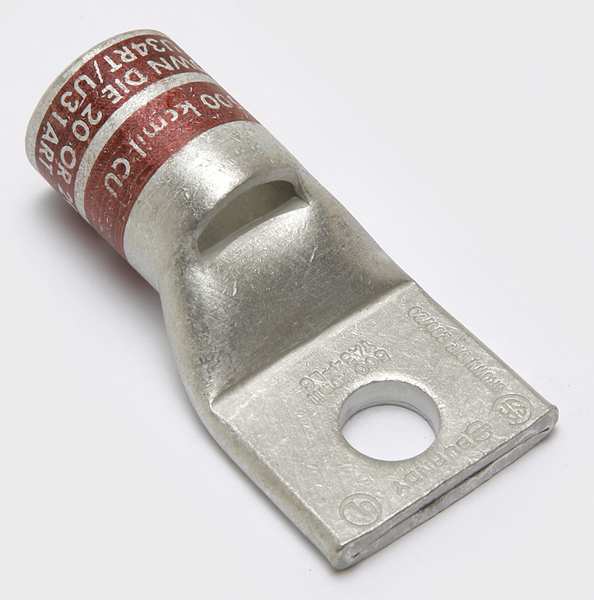

One Hole Lug Compress Conct, 500 kcmil

SKU
Brand Burndy
Categories
Description One-Hole Lug Compression Connector, Barrel Size Standard, Color Code Brown, Die Code 20, 299, Tongue Angle Straight, Tongue Width 1.55 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
graingerSKU: 22C312, mscSKU: , zoro_no: G4696151, mongo_id: 65bbe79a9a749db82274870b

Web Price

$32.36 / each

Product Details

Application For Code Conductor

Barrel Length Short

Barrel Outside Diameter 1.06 in

Barrel Size Standard

Barrel Style Chamfered, Skived

Cable Size 500 kcmil

Certification - CSA Approved Yes

Color Code Brown

Conductor - Copper Str Size 500 kcmil

Conductor - Copper Str Size Range 500 kcmil

Conductor - Material Copper

Conductor Size 500 KCMIL

Conductor Type CODE

Connector Type Standard Barrel

Contact Finish Tin

Country of Origin (subject to change) United States

Die Code 20, 299

Die Index 20;299

Dimension - B Length fraction 1-1/4 in

Dimension - B Length inch 1.27 in

Dimension - Bolt Hole Size inch 0.52 in

Dimension - Bolt Size fraction 1 to 2

Dimension - Bolt Size inch 0.5

Dimension - D inch 1.08 in

Dimension - Hole Size fraction 1 to 2

Dimension - Hole Size inch 0.53

Dimension - Hole Size mm 13 mm

Dimension - L Length Overall mm 79 mm

Dimension - Length Overall inch 3.12 in

Dimension - N inch 0.53 in

Dimension - Outside Diameter inch 1.06 in

Dimension - Pad Width inch 1.55 in

Dimension - Strip Length inch 42376

Dimension - Stud Size fraction 1 to 2

Dimension - Stud Size inch 1 to 2

Dimension - Z inch 0.55 in

Feature - Barrel Style ChamferedSkived

Feature - Barrel Type Standard

Finish Type Tin-Plated

For Conductor Material Copper

For Stranded Copper Wire Size - Maximum 500 kcmil

For Stranded Copper Wire Size - Minimum 500 kcmil

For Stud Size 1/2 in

For Wire Size 500 kcmil

For Wire Type Stranded

Hole Center to Center Not Applicable

Hole Center to End 0.53 in

Hole Size 0.51 in

Industry Standard(s) UL467

Inspection Hole Yes

Length 3.12

Length (Straight Wireway) 3.12 in

Material Copper

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 35 kV AC

Overall Length 3.12 in

Overall Width 1.56 in

Package Quantity 1

Peep Hole Yes

Physical Attribute - Number of Holes 1

Physical Attribute - Tongue Angle Straight

Physical Attribute - Tongue Type Standard

Plate Material Electro Tin

Plated Y

Plating Type Tin - Electro Plated

Rating - KVA 35 kV

Rating - Minimum Voltage 600

RoHS Compliant Yes

Special Features Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements, Un-Insulated Compression Narrow Tongue Terminal, Up to 35 Kv

Standards CSA Certified, UL 486A-486B, UL Listed, UL 467

Standards - Industry Standards Met UL467

Strip Length 1 7/16 in

Stud Size 1/2 in

Termination Style Crimp

Tongue Angle Straight

Tongue Length 1.08 in

Tongue Style Standard

Tongue Thickness 0.23 in

Tongue Width 1.55 in

Tongue Width Ranges 1.50 inches and wider

Trade Name HYLUGÃ¢ÂÂ¢
