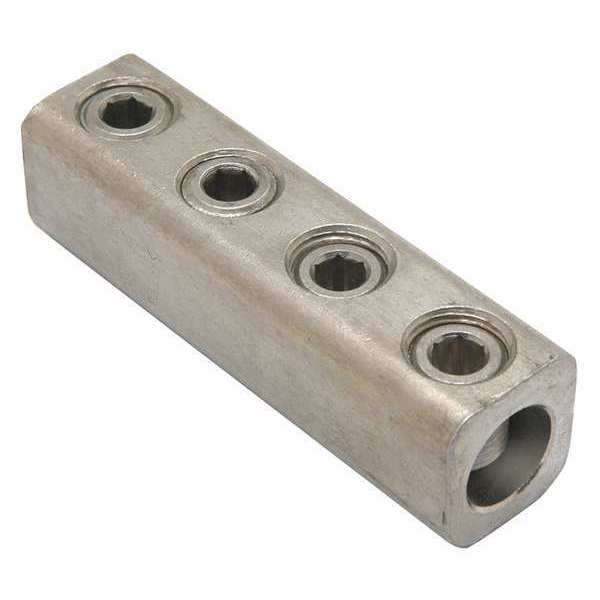

Mechanicl Conn, Splice, 350 kcmil to 6 AWG

SKU
Brand Burndy
Categories
Description Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 350 kcmil, For Stud Size 11/16 in, Head Style Hex, Number of Holes Not Applicable, Hole Diameter Not Applicable, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations 4, Tongue Width Not Applicable, Tongue Thickness Not Applicable
graingerSKU: 22C214, mscSKU: , zoro_no: G4702424, mongo_id: 65bbe7c49a749db822756dc7

Web Price

$44.19 / each

Product Details

Application For Use With Copper And Aluminum Conductors

Body Material Aluminum

Certification - CSA Approved Yes

Certification - UL Listed Direct Burial No

Color Bare

Compatible with Product Type Aluminum Cable, Copper Cable

Conductor - ACSR Cmpt Size 400 kcmil

Conductor - ACSR Str Size 336 kcmil-350 kcmil

Conductor - AL Str Run 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil

Conductor - AL Str Run Range 6 AWG-350 kcmil

Conductor - AL Str Size 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil

Conductor - AL Str Size Range 6 AWG-350 kcmil

Conductor - AL Str Tap 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil

Conductor - AL Str Tap Range 6 AWG-350 kcmil

Conductor - Copper Solid Run 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG

Conductor - Copper Solid Run Range 6 AWG-4/0 AWG

Conductor - Copper Solid Size 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG

Conductor - Copper Solid Size Range 4 AWG-4/0 AWG

Conductor - Copper Solid Tap 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG

Conductor - Copper Solid Tap Range 6 AWG-4/0 AWG

Conductor - Copper Str Compact Size 400 kcmil

Conductor - Copper Str Run 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil

Conductor - Copper Str Run Range 6 AWG-350 kcmil

Conductor - Copper Str Size 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil

Conductor - Copper Str Size Range 6 AWG-350 kcmil

Conductor - Copper Str Tap 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil

Conductor - Copper Str Tap Range 6 AWG-350 kcmil

Conductor Size 6 AWG-350 KCMIL

Connection Orientation Dual Rated Splice/Reducer

Connector Type Splice/Reducer

Contact Finish Tin

Country of Origin (subject to change) United States

Depth 0.56 in

Die Size Kearney 11/8-2Burndy 316Burndy 317Burndy 655

Dimension - H1 Height inch 1.09 in

Dimension - Height fraction 11691

Dimension - L Length Overall mm 110 mm

Dimension - Length Overall inch 4.34 in

Dimension - Width fraction 1 in

Dimension - Width inch 1.00 in

Dimension - Width mm 25 mm

For Conductor Material Aluminum, Copper

For Stranded Copper Wire Size - Maximum 350 kcmil

For Stranded Copper Wire Size - Minimum 6 AWG

For Stud Size 11/16 in

For Wire Size 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4 AWG, 4/0 AWG, 6 AWG

Head Style Hex

Hex Size 45062

Hole Diameter Not Applicable

Hole Spacing Not Applicable

Industry Standard(s) UL467

Installation Torque Recommended in-lb 275 LBS/in

Length 4.34 in

Length (Straight Wireway) 4.34 in

Material Tin-Plated Aluminum

Material - Hardware Aluminum

Max. Conductor Size 350 kcmil Stranded

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Min. Conductor Size 6 AWG Stranded

No. of Conductors 2

Number of Conductors 2

Number of Terminations 4

Overall Depth 1 1/8 in

Overall Length 4.34 in

Overall Width 1.09 in

Package Quantity 1

Physical Attribute - Number of Screws 4

Physical Attribute - Screw Type Allen

Plated Y

Plating Type Tin

Rating - Minimum Voltage 600

Special Features Connectors Feature Rounded Bottoms, Large Cable Ranges, Large Screw Diameters, Prevents Contact Of Dissimilar Metals, Provide Low Contact Resistance And Prevents Galvanic Corrosion

Standards ANSI, CSA Certified, UL Listed

Standards - Industry Standards Met UL467

Stud Size 11/16 in

Temperature Rating 194ÃÂ° F

Tongue Thickness Not Applicable

Tongue Width Not Applicable

Torque 275 in-lb

Type AMS, Dual Rated

UL Listed Yes

Width 1.09 in

Wire Size Ranges 6 AWG - 350 kcmil
