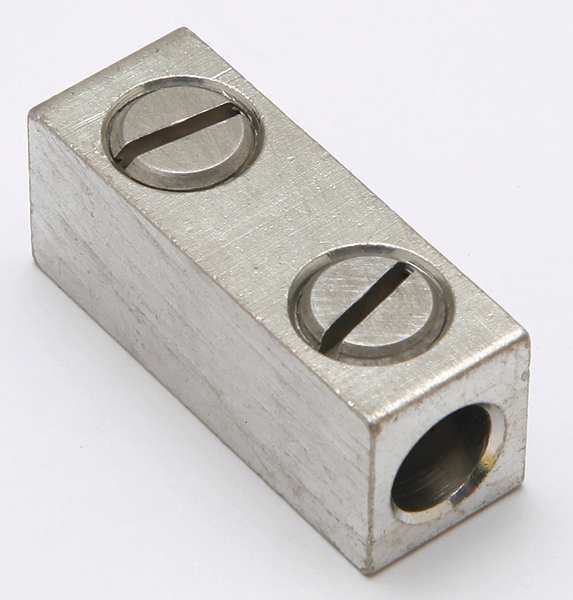

Mechanicl Conn, Splice, 2 Cond, 2 to 14 AWG

SKU
Brand Burndy
Categories
Description Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, For Stud Size 3/8 in, Head Style Slotted, Number of Holes Not Applicable, Hole Diameter Not Applicable, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations 2, Tongue Width Not Applicable, Tongue Thickness Not Applicable
graingerSKU: 22C210, mscSKU: , zoro_no: G4705005, mongo_id: 65bbee11526e052139aead78

Web Price

$11.56 / each

Product Details

Application For Use With Copper And Aluminum Conductors

Body Material Aluminum

Certification - CSA Approved Yes

Certification - UL Listed Direct Burial No

Color Bare

Compatible with Product Type Aluminum Cable, Copper Cable

Conductor - ACSR Cmpt Size 2 AWG

Conductor - ACSR Str Size 2 AWG-1 AWG

Conductor - AL Str Run 12 AWG;10 AWG;8 AWG;6 AWG;4 AWG;3 AWG;2 AWG

Conductor - AL Str Run Range 12 AWG-2 AWG

Conductor - AL Str Size 12 AWG;10 AWG;8 AWG;6 AWG;4 AWG;3 AWG;2 AWG

Conductor - AL Str Size Range 12 AWG-2 AWG

Conductor - AL Str Tap 12 AWG;10 AWG;8 AWG;6 AWG;4 AWG;3 AWG;2 AWG

Conductor - AL Str Tap Range 12 AWG-2 AWG

Conductor - Copper Solid Run 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG

Conductor - Copper Solid Run Range 14 AWG-2 AWG

Conductor - Copper Solid Size 12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG

Conductor - Copper Solid Size Range 12 AWG-2 AWG

Conductor - Copper Solid Tap 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG

Conductor - Copper Solid Tap Range 14 AWG-2 AWG

Conductor - Copper Str Compact Size 2 AWG

Conductor - Copper Str Run 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG

Conductor - Copper Str Run Range 14 AWG-2 AWG

Conductor - Copper Str Size 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG

Conductor - Copper Str Size Range 14 AWG-2 AWG

Conductor - Copper Str Tap 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG

Conductor - Copper Str Tap Range 14 AWG-2 AWG

Conductor Size 14-2 AWG

Connection Orientation Dual Rated Splice/Reducer

Connector Type Splice/Reducer

Contact Finish Tin

Country of Origin (subject to change) United States

Depth 0.56 in

Die Size EEI 11ABurndy WK840Burndy 249Kearney 840T&B TXT&B 76

Dimension - H1 Height inch 0.56 in

Dimension - Height fraction 45185

Dimension - L Length Overall mm 40 mm

Dimension - Length Overall inch 1.59 in

Dimension - Width fraction 9/16 in

Dimension - Width inch 0.56 in

Dimension - Width mm 14 mm

For Conductor Material Aluminum, Copper

For Stranded Copper Wire Size - Maximum 2 AWG

For Stranded Copper Wire Size - Minimum 14 AWG

For Stud Size 3/8 in

For Wire Size 12 AWG, 14 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG

Head Style Slotted

Hex Size Slot

Hole Diameter Not Applicable

Hole Spacing Not Applicable

Industry Standard(s) UL467

Installation Torque Recommended in-lb 50 LBS/in

Length 1.59 in

Length (Straight Wireway) 1.59 in

Material Tin-Plated Aluminum

Material - Hardware Aluminum

Max. Conductor Size 2 AWG Solid and Stranded

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Min. Conductor Size 14 AWG Stranded

No. of Conductors 2

Number of Conductors 2

Number of Terminations 2

Overall Depth 9/16 in

Overall Length 1.59 in

Overall Width 0.56 in

Package Quantity 1

Physical Attribute - Number of Screws 2

Physical Attribute - Screw Type Slot

Plated Y

Plating Type Tin

Rating - Minimum Voltage 600

Special Features Connectors Feature Rounded Bottoms, Large Cable Ranges, Large Screw Diameters, Prevents Contact Of Dissimilar Metals, Provide Low Contact Resistance And Prevents Galvanic Corrosion

Standards ANSI, CSA Certified, UL Listed

Standards - Industry Standards Met UL467

Temperature Rating 194ÃÂ° F

Tongue Thickness Not Applicable

Tongue Width Not Applicable

Torque 50 in-lb

Type AMS, Dual Rated

UL Listed Yes

Width 0.56 in

Wire Size Ranges 14 AWG - 2 AWG
