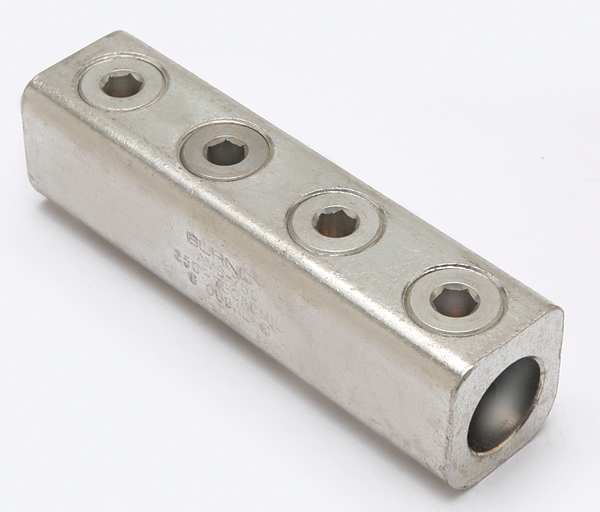

Mechanical Conn, Splice, 750 to 250 kcmil

SKU
Brand Burndy
Categories
Description Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 250 kcmil, For Stranded Copper Wire Size - Maximum 750 kcmil, For Stud Size 15/16 in, Head Style Hex, Number of Holes Not Applicable, Hole Diameter Not Applicable, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 4, Number of Terminations 4, Tongue Width Not Applicable, Tongue Thickness Not Applicable
graingerSKU: 22C216, mscSKU: , zoro_no: G4683183, mongo_id: 65bbe77b3aaddbd5a9099bd4

Web Price

$95.99 / each

Product Details

Application For Use With Copper And Aluminum Conductors

Body Material Aluminum

Certification - CSA Approved Yes

Certification - UL Listed Direct Burial No

Color Bare

Compatible with Product Type Aluminum Cable, Copper Cable

Conductor - ACSR Cmpt Size 900 kcmil

Conductor - ACSR Str Size 750 kcmil

Conductor - AL Str Run 250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil

Conductor - AL Str Run Range 250 kcmil-750 kcmil

Conductor - AL Str Size 250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil

Conductor - AL Str Size Range 250 kcmil-750 kcmil

Conductor - AL Str Tap 250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil

Conductor - AL Str Tap Range 250 kcmil-750 kcmil

Conductor - Copper Str Compact Size 900 kcmil

Conductor - Copper Str Run 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil

Conductor - Copper Str Run Range 250 kcmil-750 kcmil

Conductor - Copper Str Size 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil

Conductor - Copper Str Size Range 250 kcmil-750 kcmil

Conductor - Copper Str Tap 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil

Conductor - Copper Str Tap Range 250 kcmil-750 kcmil

Conductor Size 250-750 KCMIL

Connection Orientation Dual Rated Splice/Reducer

Connector Type Splice/Reducer

Contact Finish Tin

Country of Origin (subject to change) United States

Depth 0.56 in

Die Size Kearney 11/2Burndy 301

Dimension - H1 Height inch 1.63 in

Dimension - Height fraction 39452

Dimension - L Length Overall mm 154 mm

Dimension - Length Overall inch 6.06 in

Dimension - Width fraction 1-7/16 in

Dimension - Width inch 1.44 in

Dimension - Width mm 37 mm

For Conductor Material Aluminum, Copper

For Stranded Copper Wire Size - Maximum 750 kcmil

For Stranded Copper Wire Size - Minimum 250 kcmil

For Stud Size 15/16 in

For Wire Size 300 kcmil, 350 kcmil, 400 kcmil, 450 kcmil, 500 kcmil, 550 kcmil, 600 kcmil, 700 kcmil, 750 kcmil

Head Style Hex

Hex Size 44928

Hole Diameter Not Applicable

Hole Spacing Not Applicable

Industry Standard(s) UL467

Installation Torque Recommended in-lb 500 LBS/in

Length 6.06 in

Length (Straight Wireway) 6.06 in

Material Tin-Plated Aluminum

Material - Hardware Aluminum

Max. Conductor Size 750 kcmil Stranded

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Min. Conductor Size 250 kcmil Stranded

No. of Conductors 4

Number of Conductors 4

Number of Terminations 4

Overall Depth 1 7/16 in

Overall Length 6.06 in

Overall Width 1.63 in

Package Quantity 1

Physical Attribute - Number of Screws 4

Physical Attribute - Screw Type Allen

Plated Y

Plating Type Tin

Rating - Minimum Voltage 600

Special Features Connectors Feature Rounded Bottoms, Large Cable Ranges, Large Screw Diameters, Prevents Contact Of Dissimilar Metals, Provide Low Contact Resistance And Prevents Galvanic Corrosion

Standards ANSI, CSA Certified, UL Listed

Standards - Industry Standards Met UL467

Stud Size 15/16 in

Temperature Rating 194ÃÂ° F

Tongue Thickness Not Applicable

Tongue Width Not Applicable

Torque 500 in-lb

Type AMS, Dual Rated

UL Listed Yes

Width 1.63 in

Wire Size Ranges 250 kcmil - 750 kcmil
