Home / Mechanical Conn, Lug, 500 kcmil to 4 AWG

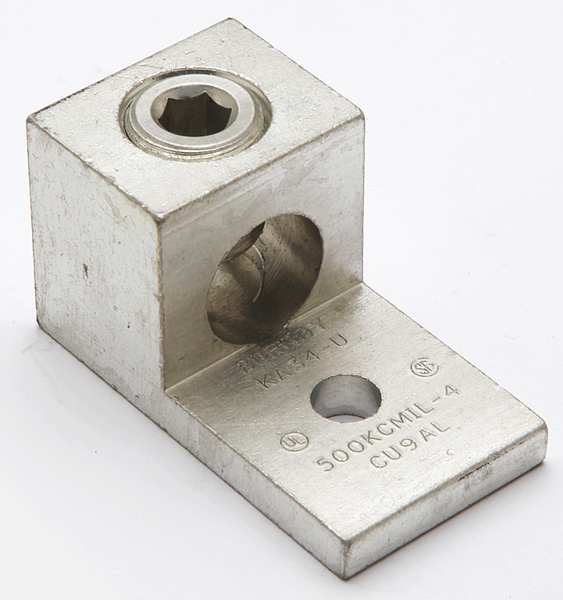

Mechanical Conn, Lug, 500 kcmil to 4 AWG

Mechanical Conn, Lug, 500 kcmil to 4 AWG

  • Burndy
  • Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 500 kcmil, For Stud Size 3/8 in, Head Style Hex, Number of Holes 1, Hole Diameter 0.42 in, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 1.5 in, Tongue Width 1.52 in, Tongue Thickness 0.31 in, Connector Type Lug

    graingerSKU: 22C177, mscSKU: , zoro_no: G4702214, mongo_id: 65bbe5913aaddbd5a9fd0f68

Web Price
$22.69 / each

Product Details

For Aluminum And Copper Conductors
Aluminum
No
No
Aluminum Cable, Copper Cable
4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil
4 AWG-500 kcmil
4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
4 AWG-500 kcmil
4 AWG-500 KCMIL
CU C Str-SizeAL C Str-Size
Dual Rated Lug
Lug
Tin
United States
0.38 in
2023-03-08
1.50 in
1.58 in
1.58 in
0.42 in
11 mm
71 mm
2.81 in
0.88 in
1.52 in
44993
1-51/100 in
1.51 in
38 mm
Aluminum, Copper
500 kcmil
4 AWG
3/8 in
1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4 AWG, 4/0 AWG, 400 kcmil, 450 kcmil, 500 kcmil
Hex
0.42 in
Not Applicable
UL468A-468B
450
2.81 in
2.81 in
Tin-Plated Aluminum
Aluminum
500 kcmil Stranded
194 Degrees F
600 V
4 AWG Stranded
1
1
1
1 9/16 in
2.81 in
1.58 in
1
1
1
Allen
Y
Tin
Providing Low Contact Resistance
CSA Certified, UL Listed
UL468A-468B
3/8 in
194
1.5 in
0.31 in
1.52 in
450 in-lb
Bolted Lugs & Terminals
Yes
1.58 in
4 AWG - 500 kcmil
