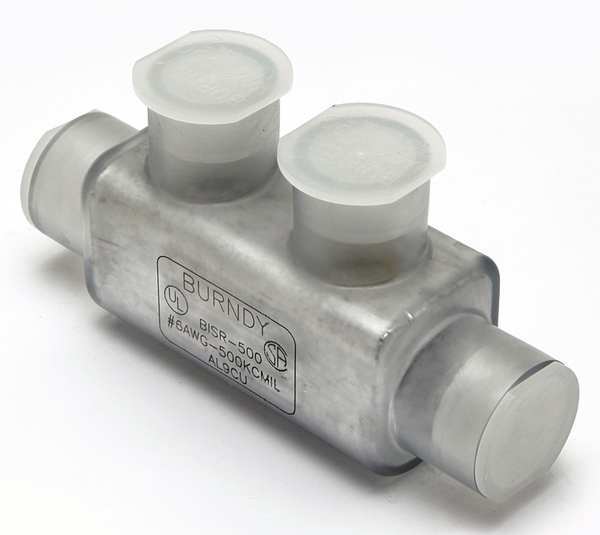

Insulated Multitap Connector, 5.00 In. L

SKU
Brand Burndy
Categories
Description Insulated Multitap Connector, Body Material Aluminum, Color Clear, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 500 kcmil, Head Style Hex, Hex Size 1/2 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 2, RoHS Compliant Yes, Standards CSA Approved, UL 486A, UL 486B, UL Listed
graingerSKU: 22C261, mscSKU: , zoro_no: G4674607, mongo_id: 65bbe81a9a749db8227737f5

Web Price

$74.94 / each

Product Details

Application For Indoor Use Only

Body Material Aluminum

Certification - CSA Approved Yes

Certification - UL Listed Direct Burial No

Color Clear

Compatible with Product Type Code Conductor

Conductor - AL Str Size 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil

Conductor - AL Str Size Range 6 - 500 Str

Conductor - Copper Str Size #6;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500

Conductor - Copper Str Size Range 6 - 500 Str

Conductor Size 6 AWG-500 KCMIL

Conductor Type AL C Str-SizeCU C Str-Size

Connector Type Double-Sided Entry

Country of Origin (subject to change) United States

Current 380 A

Dimension - Height fraction 2.625 in

Dimension - Height inch 2.62 in

Dimension - L Length Overall mm 127 mm

Dimension - Length Overall inch 5 in

Dimension - Width fraction 1-31/50 in

Dimension - Width inch 1.62 in

Dimension - Width mm 41 mm

Direct Burial Rated No

Finish Unplated

For Conductor Material Aluminum, Copper

For Stranded Copper Wire Size - Maximum 500 kcmil

For Stranded Copper Wire Size - Minimum 6 AWG

For Wire Size 1 AWG, 1/0 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4 AWG, 4/0 AWG, 400 kcmil, 500 kcmil, 6 AWG

Head Style Hex

Hex Key 5/16 in

Hex Size 1/2 in

Industry Standard(s) UL468A-468B

Installation Torque Recommended in-lb 275 in-lb

Insulation Y

Insulation Material Plastisol

Insulation Type Plastisol

Length 5.0 in

Length (Straight Wireway) 5.0 in

Material Aluminum

Material - Hardware Aluminum

Max. Conductor Size 500 kcmil

Max. Voltage 600V AC/DC

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Min. Conductor Size 6 AWG

Mounting Hole Size Not Applicable

No. of Ports 2

Number of Ports 2

Operating Voltage 600 V

Overall Length 5 in

Overall Width 1.62 in

Package Quantity 1

Physical Attribute - Number of Screws 2

Physical Attribute - Screw Type Allen

Plated N

Plating Type Unplated

Rating - Minimum Voltage 600

RoHS Compliant Yes

Screw Material Aluminum

Special Features Eliminates Taping, Insulated, Lowers Installation Costs, Oxide Inhibitor Inhibits Moisture and Contaminants From Entering the Contact Area, Saves Time

Standards CSA Approved, UL 486A, UL 486B, UL Listed

Standards - Industry Standards Met UL468A-468B

Strip Length 1 1/2 in

Stud Size 3/8 in

Tap Shape T

Temperature Rating 90 ÃÂ°C

Torque 275 in-lb

Trade Name UNITAPÃ¢ÂÂ¢

Type BISR, In-Line

UL Listed Yes

Voltage - Maximum 600 V

Width 2.62 in
