Home / Insulated Multitap Connector, 2.91 In. L

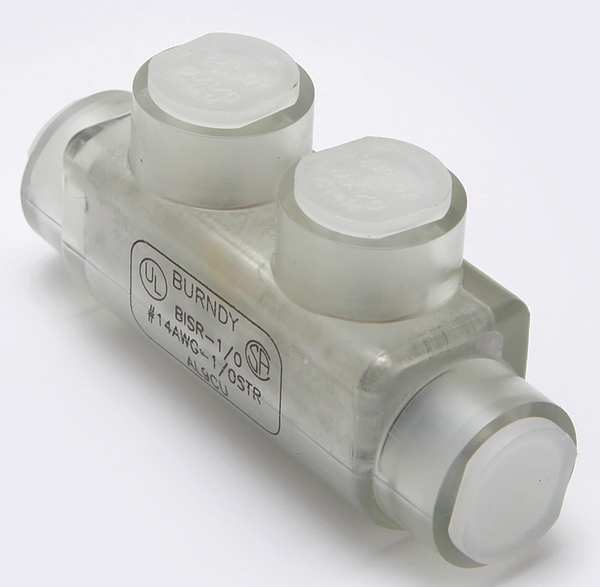

Insulated Multitap Connector, 2.91 In. L

SKU
Brand Burndy
Categories
Description Insulated Multitap Connector, Body Material Aluminum, Color Clear, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 2, RoHS Compliant Yes, Standards CSA Approved, UL 486A, UL 486B, UL Listed
graingerSKU: 22C249, mscSKU: , zoro_no: G4692466, mongo_id: 65bbe84022d7a989a98e5d42

Web Price

$32.06 / each

Product Details

Application For Indoor Use Only, Copper Or Stranded Aluminum

Body Material Aluminum

Certification - CSA Approved Yes

Certification - UL Listed Direct Burial No

Color Clear

Compatible with Product Type Code Conductor

Conductor - AL Str Size Range 14 - 1/0 Str

Conductor - Copper Str Size Range 14 - 1/0 Str

Conductor Size 14-1/0 AWG

Conductor Type AL C Str-SizeCU C Str-Size

Connector Type Double-Sided Entry

Country of Origin (subject to change) United States

Current 150 A

Dimension - Height inch 1.38 in

Dimension - L Length Overall mm 74 mm

Dimension - Length Overall inch 2.91 in

Dimension - Width inch 0.91 in

Dimension - Width mm 23 mm

Direct Burial Rated No

Finish Unplated

For Conductor Material Aluminum, Copper

For Stranded Copper Wire Size - Maximum 1/0 AWG

For Stranded Copper Wire Size - Minimum 14 AWG

For Wire Size 1 AWG, 1/0 AWG, 10 AWG, 12 AWG, 14 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG

Head Style Hex

Hex Key 45001

Hex Size 3/16 in

Industry Standard(s) UL468A-468B

Insulation Y

Insulation Material Plastisol

Insulation Type Plastisol

Length 2.91 in

Length (Straight Wireway) 2.91 in

Material Aluminum

Max. Conductor Size 1/0 AWG

Max. Voltage 600V AC/DC

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Min. Conductor Size 14 AWG

Mounting Hole Size Not Applicable

No. of Ports 2

Number of Ports 2

Operating Voltage 600 V

Overall Length 2.91 in

Overall Width 0.91 in

Package Quantity 1

Physical Attribute - Number of Screws 2

Physical Attribute - Screw Type Allen

Plated N

Plating Type Unplated

Rating - Minimum Voltage 600

RoHS Compliant Yes

Screw Material Aluminum

Special Features Eliminates Taping, Insulated, Lowers Installation Costs, Oxide Inhibitor Inhibits Moisture and Contaminants From Entering the Contact Area, Saves Time

Standards CSA Approved, UL 486A, UL 486B, UL Listed

Standards - Industry Standards Met UL468A-468B

Strip Length 1 in

Stud Size 3/16 in

Tap Shape T

Temperature Rating 194

Torque 50 in-lb

Trade Name UNITAPÃ¢ÂÂ¢

Type BISR

UL Listed Yes

Voltage - Maximum 600 V

Width 1.38 in
