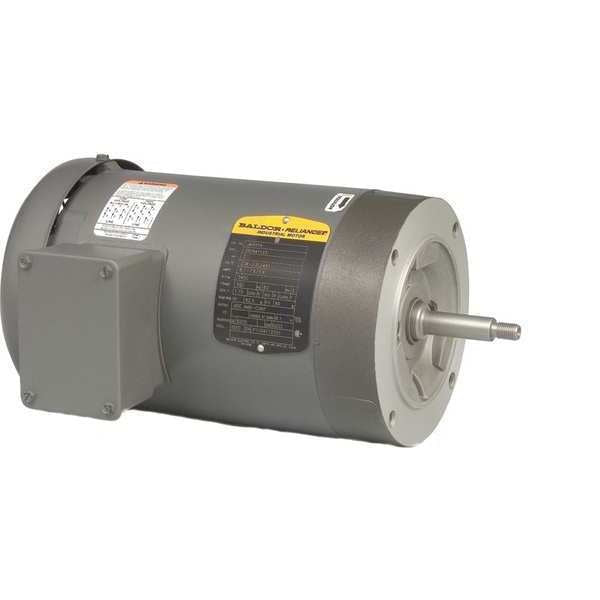

Jet Pump AC Motor, 2 HP, 3490 rpm, 3-Phase

Home / Jet Pump AC Motor, 2 HP, 3490 rpm, 3-Phase

Jet Pump AC Motor, 2 HP, 3490 rpm, 3-Phase

SKU
Brand Baldor-Reliance
Categories Pumps
Description Jet Pump Motor, Bearing Protection Electrically Isolated, Body Dia. 6.6 in, Bolt Circle Dia. 5 7/8 in, CC Number CC010A, Conduit Box Location Exterior, Conduit Box Position F1, Diaphragm Type None, Duty Cycle Continuous, Finish Matte, Frame 56J, Hz 60, Full Load Amps 2.5, Height 6 1/2 in, HP 2 hp, Includes None, Ins. Class B, Inverter Rated Yes, Inverter Rating 10:1, Lead Length 18 in, Length Less Shaft 11 5/16 in, Manufacturers Warranty Length 1 yr, Max. Ambient Temp. 40 Degrees C

Web Price

$1,147.49 / each

Qty

Product Details

Bearing Protection Electrically Isolated

Body Dia. 6.6 in

Bolt Circle Dia. 5 7/8 in

CC Number CC010A

Conduit Box Location Exterior

Conduit Box Position F1

Country of Origin (subject to change) United States

Diaphragm Type None

Duty Cycle Continuous

Finish Matte

Frame 56J

Full Load Amps 2.5

Height 6 1/2 in

HP_ 2 hp

Hz_ 60

Includes None

Ins. Class B

Inverter Rated Yes

Inverter Rating 10:1

Lead Length 18 in

Length Less Shaft 11 5/16 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 40 Degrees C

Max. SF Amps 2.5

Motor Application Pump

Motor Bearings Ball

Motor Design 3-Phase

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Steel

Motor Mounting Position Vertical

Motor Mounting Type Rigid Base

Motor Service Factor 1.2

Motor Shaft Design Threaded

Motor Shaft Rotation CCW

Motor Sub Application Pool and Spa Pump

Motor Thermal Protection None

Nameplate RPM 3,450

NEMA Design B

No. of Speeds 1

Nominal Efficiency 0.8 %

Number of Wires 9

Overall Length 13 3/4 in

Overload Relay Amp Setting 12

Overload Relay Max. Amp Setting 12 A

Overload Relay Required Yes

Package Quantity 1

Part Winding Start Capable Yes

Phase Three

Regreasable Bearings Regreasable Bearings

RPM Range 3,001-3,600

Shaft Dia. 5/8 in

Shaft Length 2 3/8 in

Shaft Material Steel

Standards CSA EEV, NEMA Premium, UR

Stator Type Open

Usable @ 200V Yes

Usable @ 208V Yes

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 41 lb
