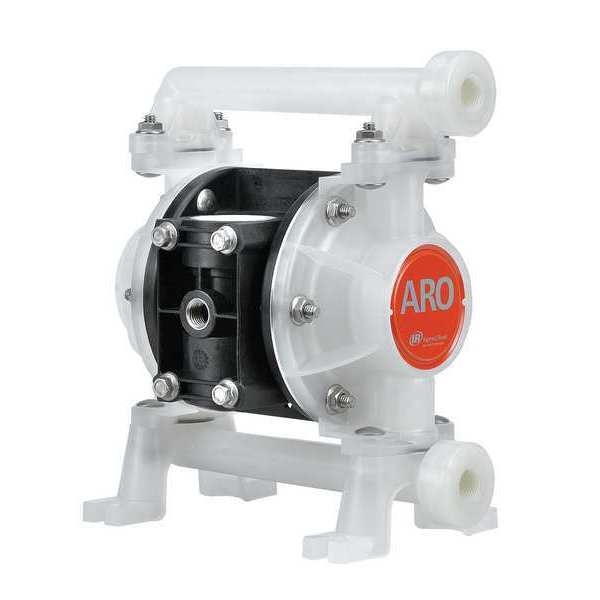

Double Diaphragm Pump, Polypropylene, Air Operated, Hytrel, 8.7 GPM

Home / Double Diaphragm Pump, Polypropylene, Air Operated, Hytrel, 8.7 GPM

Double Diaphragm Pump, Polypropylene, Air Operated, Hytrel, 8.7 GPM

SKU
Brand Aro
Categories Pumps
Description Double Diaphragm Pump, Air Consumption (Maximum) 18 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Polypropylene, Diaphragm Material Hytrel, Feet of Head (Maximum) 230 ft, Flow Rate (Maximum) 11 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3/8 in, Media Discharge Connection Type NPTF, Media Discharge Location Side, Media Intake Connection Size 3/8 in, Media Intake Connection Type NPT, Media Intake Location Side
graingerSKU: 6CCJ9, mscSKU: , zoro_no: G1101721, mongo_id: 65bbe7543aaddbd5a908aed2

Web Price

$806.24 / each

Qty

Product Details

Agency Compliance CE, REACH, RoHS

Air Consumption (Maximum) 18 scfm

Air Inlet 1/4 in NPT

Air Inlet Size 1/4 in FNPT

Air Intake Connection Size 1/4 in

Air Intake Connection Type NPT

Air Intake Pressure (Maximum) 100 psi

Ball Material Nitrile

Body Material Polypropylene

Check Seat Material Polypropylene

Chemical Compatibility Oils, Oil-Based Paint, Water

Connection Style NPT

Country of Origin (subject to change) United States

Diaphragm Material Hytrel

Diaphragm Material - Pumps Hytrel

Feet of Head (Maximum) 230 ft

Flow Rate (Maximum) 11 gpm

Flow Rate @ 10 psi Not Applicable

Flow Rate @ 100 psi 11 gpm

Flow Rate @ 120 psi Not Applicable

Flow Rate @ 15 psi Not Applicable

Flow Rate @ 20 psi Not Applicable

Flow Rate @ 30 psi Not Applicable

Flow Rate @ 40 psi 8 gpm

Flow Rate @ 50 psi 9 gpm

Flow Rate @ 60 psi 9.5 gpm

Flow Rate @ 70 psi 10 gpm

Flow Rate @ 80 psi 10.5 gpm

Flow Rate @ 90 psi 10.8 gpm

Fluid Connection Size 3/8 in

Fluid Connection Type NPT

Fluid Discharge Connection 3/8 in NPTF

Fluid Intake Connection 3/8 in NPT

For Use With Potable Systems No

Height 9 5/16 in

Housing Material Polypropylene

Housing Material - Pumps Polypropylene

Inlet/Outlet Size 3/8 in

Item - Air Operated Pumps Double Diaphragm Pump

Length 7 15/16 in

Manifold Connection Single Port

Manifold Connection Type NPT

Manufacturers Warranty Length 5 yr

Max. Dia. Solids 1/16 in

Max. Flow 8.7 gpm

Max. Flow GPM 8.7 gpm

Max. Operating Pressure 100 psi

Max. Temp - Pumps 150 Degrees F

Max. Temp. 150 Degrees F

Media Discharge Connection Size 3/8 in

Media Discharge Connection Type NPTF

Media Discharge Location Side

Media Discharge Size 3/8 in

Media Discharge Type NPTF

Media Intake Connection Size 3/8 in

Media Intake Connection Type NPT

Media Intake Location Side

Media Intake Size 3/8 in

Media Intake Type NPT

Media Temperature (Maximum) 180 Degrees F

Media Temperature (Minimum) 10 Degrees F

Mounting Hardware Material Stainless Steel

Nameplate Voltage N

Non-Wetted Housing Material Plastic

NPSHr 35 ft of head

Operating Pressure (Maximum) 100 psi

Operation Type Air Operated

Overall Height 9.2 in

Overall Length 7.9 in

Overall Size 7.9 in x 5.7 in x 9.2 in

Overall Width 5.7 in

Package Quantity 1

Port Location Side Side

Priming Self-Priming

Pump Assembly Type Bolt

Pump Operation Type Air

Self-Priming Dry 11 ft

Series PD03P

Series Family Compact

Solid Diameter (Maximum) 0.06 in

Standards ATEX Certified

Valve Material Buna-N

Valve Type Ball

Viscosity (Maximum) 500 cps

Wetted Housing Material Polypropylene

Width 5 11/16 in
