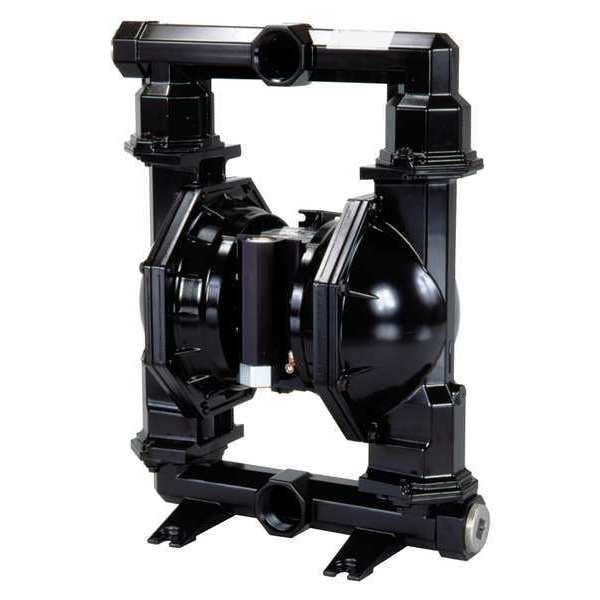

Double Diaphragm Pump, Cast iron, Air Operated, Santoprene, 172 GPM

Home / Double Diaphragm Pump, Cast iron, Air Operated, Santoprene, 172 GPM

Double Diaphragm Pump, Cast iron, Air Operated, Santoprene, 172 GPM

SKU
Brand Aro
Categories Pumps
Description Double Diaphragm Pump, Air Consumption (Maximum) 140 scfm, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT, Check Seat Material Santoprene, Diaphragm Material Santoprene, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 180 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Side, Media Intake Connection Size 2 in, Media Intake Connection Type NPTF
graingerSKU: 6CCR1, mscSKU: , zoro_no: G3160866, mongo_id: 65bbe8bc22d7a989a9910472

Web Price

$4,316.24 / each

Qty

Product Details

Agency Compliance ATEX, CE, REACH, RoHS

Air Consumption (Maximum) 140 scfm

Air Inlet 3/4 in NPTF

Air Inlet Size 3/4 in FNPT

Air Intake Connection Size 3/4 in

Air Intake Connection Type NPT

Air Intake Pressure (Maximum) 120 psi

Ball Material Santoprene(R)

Body Material Cast iron

Check Seat Material Santoprene

Chemical Compatibility Alcohol, Antifreeze, Diesel Exhaust Fluid, Water

Connection Style NPT

Country of Origin (subject to change) United States

Diaphragm Material Santoprene

Diaphragm Material - Pumps Santoprene(R)

Feet of Head (Maximum) 289 ft

Flow Rate (Maximum) 180 gpm

Flow Rate @ 10 psi Not Applicable

Flow Rate @ 100 psi 163 gpm

Flow Rate @ 120 psi 180 gpm

Flow Rate @ 15 psi Not Applicable

Flow Rate @ 20 psi Not Applicable

Flow Rate @ 30 psi Not Applicable

Flow Rate @ 40 psi 100 gpm

Flow Rate @ 50 psi 119.5 gpm

Flow Rate @ 60 psi 131.2 gpm

Flow Rate @ 70 psi 139 gpm

Flow Rate @ 80 psi 151 gpm

Flow Rate @ 90 psi 158.2 gpm

Fluid Connection Size 2 in

Fluid Connection Type NPT

Fluid Discharge Connection 2 in NPTF

Fluid Intake Connection 2 in NPTF

For Use With Potable Systems No

Height 26 1/4 in

Housing Material Cast Iron

Housing Material - Pumps Cast Iron

Inlet/Outlet Size 2 in

Item - Air Operated Pumps Double Diaphragm Pump

Length 19 3/4 in

Manifold Connection Single Port

Manifold Connection Type NPT

Manufacturers Warranty Length 5 yr

Max. Dia. Solids 1/4 in

Max. Flow 172 gpm

Max. Flow GPM 172 gpm

Max. Operating Pressure 120 psi

Max. Temp - Pumps 200 Degrees F

Max. Temp. 200 Degrees F

Media Discharge Connection Size 2 in

Media Discharge Connection Type NPTF

Media Discharge Location Center, Side

Media Discharge Size 2 in

Media Discharge Type NPTF

Media Intake Connection Size 2 in

Media Intake Connection Type NPTF

Media Intake Location Center, Side

Media Intake Size 2 in

Media Intake Type NPTF

Media Temperature (Maximum) 225 Degrees F

Media Temperature (Minimum) -40 Degrees F

Mounting Hardware Material Plated Steel

Nameplate Voltage N

Non-Wetted Housing Material Aluminum

NPSHr 35 ft of head

Operating Pressure (Maximum) 120 psi

Operation Type Air Operated

Overall Height 27.9 in

Overall Length 19.8 in

Overall Size 19.8 in x 21.6 in x 27.9 in

Overall Width 21.6 in

Package Quantity 1

Port Location Center Side, Side Center, Side Side

Priming Self-Priming

Pump Assembly Type Bolt

Pump Operation Type Air

Self-Priming Dry 14 ft

Series PX20X

Series Family EXP

Solid Diameter (Maximum) 0.25 in

Standards CE; REACH; RoHS

Valve Material Santoprene

Valve Type Ball

Viscosity (Maximum) 50,000 cps

Wetted Housing Material Cast Iron

Width 21 5/8 in
