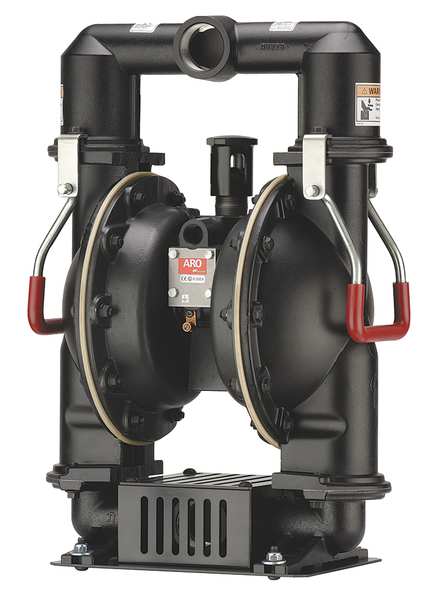

Double Diaphragm Pump, Aluminum, Air Operated, Santoprene, 156 GPM

Home / Double Diaphragm Pump, Aluminum, Air Operated, Santoprene, 156 GPM

Double Diaphragm Pump, Aluminum, Air Operated, Santoprene, 156 GPM

SKU
Brand Aro
Categories Pumps
Description Double Diaphragm Pump, Air Consumption (Maximum) 140 scfm, Air Intake Connection Size 3/4 in, Air Intake Connection Type FNPT, Check Seat Material Aluminum, Diaphragm Material Santoprene, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 162 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Media Intake Connection Size 2 in, Media Intake Connection Type FNPT, Media Intake Location Bottom
graingerSKU: 3FPY6, mscSKU: , zoro_no: G0587797, mongo_id: 65bbe76f9a749db822739ac7

Web Price

$3,404.99 / each

Qty

Product Details

Agency Compliance ATEX, CE, REACH, RoHS

Air Consumption (Maximum) 140 scfm

Air Inlet 3/4 in FNPT

Air Inlet Size 3/4 in FNPT

Air Intake Connection Size 3/4 in

Air Intake Connection Type FNPT

Air Intake Pressure (Maximum) 120 psi

Ball Material Santoprene(R)

Body Material Aluminum

Check Seat Material Aluminum

Chemical Compatibility Alcohol, Antifreeze, Diesel Exhaust Fluid, Water

Connection Style NPT

Country of Origin (subject to change) China

Diaphragm Material Santoprene

Diaphragm Material - Pumps Santoprene(R)

Feet of Head (Maximum) 289 ft

Flow Rate (Maximum) 162 gpm

Flow Rate @ 10 psi Not Applicable

Flow Rate @ 100 psi 155 gpm

Flow Rate @ 120 psi 162 gpm

Flow Rate @ 15 psi Not Applicable

Flow Rate @ 20 psi Not Applicable

Flow Rate @ 30 psi Not Applicable

Flow Rate @ 40 psi 113 gpm

Flow Rate @ 50 psi 124.5 gpm

Flow Rate @ 60 psi 131.4 gpm

Flow Rate @ 70 psi 136 gpm

Flow Rate @ 80 psi 145.5 gpm

Flow Rate @ 90 psi 151.2 gpm

Fluid Connection Size 2 in

Fluid Connection Type NPT

Fluid Discharge Connection 2 in NPTF

Fluid Intake Connection 2 in FNPT

For Use With Potable Systems No

Housing Material Aluminum

Housing Material - Pumps Aluminum

Inlet/Outlet Size 2 in

Item - Air Operated Pumps Double Diaphragm Pump

Manifold Connection Single Port

Manifold Connection Type NPT

Manufacturers Warranty Length 5 yr

Max. Dia. Solids 3/4 in

Max. Flow 156 gpm

Max. Flow GPM 156

Max. Operating Pressure 120 psi

Max. Temp - Pumps 225 Degrees F

Max. Temp. 225 Degrees F

Media Discharge Connection Size 2 in

Media Discharge Connection Type NPTF

Media Discharge Location Center

Media Discharge Size 2 in

Media Discharge Type NPTF

Media Intake Connection Size 2 in

Media Intake Connection Type FNPT

Media Intake Location Bottom

Media Intake Size 2 in

Media Intake Type FNPT

Media Temperature (Maximum) 225 Degrees F

Media Temperature (Minimum) -40 Degrees F

Mounting Hardware Material Aluminum, Carbon Steel

Nameplate Voltage N

Non-Wetted Housing Material Aluminum

Operating Pressure (Maximum) 120 psi

Operation Type Air Operated

Package Quantity 1

Port Location Bottom Center

Priming Self-Priming

Pump Assembly Type Bolt

Pump Operation Type Air

Self-Priming Dry 15 ft

Self-Priming Wet 25 ft

Series 66M1X0

Series Family Specialty

Solid Diameter (Maximum) 0.5 in

Standards ATEX Certified

Valve Material Santoprene

Valve Type Ball

Viscosity (Maximum) 50,000 cps

Wetted Housing Material Aluminum
