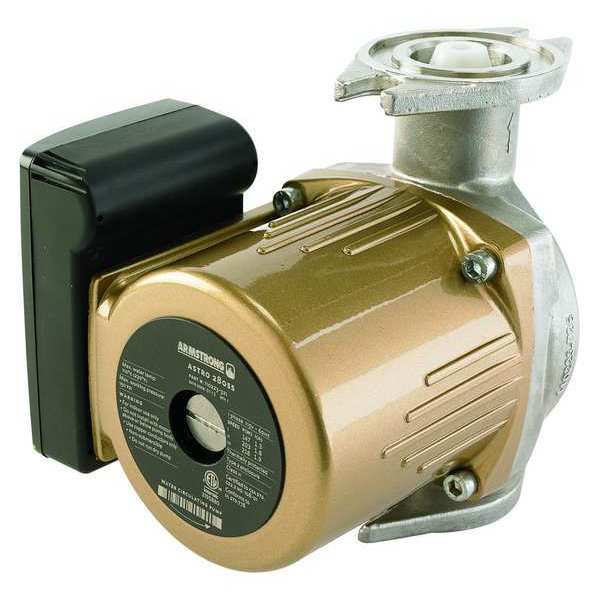

Hot Water Circulating Pump, 5/16 hp, 115V, 1 Phase, Flange Connection

Home / Hot Water Circulating Pump, 5/16 hp, 115V, 1 Phase, Flange Connection

Hot Water Circulating Pump, 5/16 hp, 115V, 1 Phase, Flange Connection

SKU
Brand Armstrong Pumps
Categories Pumps
Description Potable Water Circulating Pump, Compatible Intake Pipe Size 1 1/4 in, Connection Type Flange, Face to Face Dimension 6 1/2 in, Flange or Union Included Yes, For Use With Potable Systems Yes, Horsepower 5/16, Maximum Feet of Head 31 ft, Maximum Flow Rate @ 10 Feet of Head 24 gpm, Maximum Flow Rate @ 15 Feet of Head 19 gpm, Maximum Flow Rate @ 1 Foot of Head 32 gpm, Nameplate Voltage 115V AC, Number of Speeds 3, Phase Single, Pump Type Multi-Speed, Series Family Astro 2
graingerSKU: 32UN06, mscSKU: , zoro_no: G8509645, mongo_id: 65bbe79a9a749db822749080

Web Price

$793.74 / each

Qty

Product Details

Amps 1.9 A

Best Efficiency GPM @ Head 16 gpm @ 18 ft

Body Gasket Material EPDM

Compatible Discharge Pipe Size 1 1/4 in

Compatible Intake Pipe Size 1 1/4 in

Compatible Media Type Water

Compliance cETL, Low Lead, NSF-372

Connection Style Flange

Connection Type Flange

Country of Origin (subject to change) China

Drive Type Direct

Electrical Connection Type Hardwired

Face to Face Dimension 6 1/2 in

Features 3 Speed, Compact, High Performance, Maintenance Free

Flange or Union Included Yes

Flange/Union Included No

For Use With Potable Systems

For Use With Potable Systems Yes

Frequency 60 Hz

Height 6 1/2 in

Horsepower 5/16

Housing Material Stainless steel

Housing Material - Pumps Stainless Steel

HP_ 5/16 hp

HVAC Circulating Pump Type Hot Water Circulating Pump

Impeller Material Plastic

Includes (2) Gaskets

Inlet/Outlet Size 1-1/4 in

Length 5 1/2 in

Loop Configuration Open

Manufacturer Warranty Length 2 yr

Manufacturers Warranty Length 2 yr

Max. GPM @ Head 32 gpm @ 0 ft

Max. Operating Pressure 150 psi

Max. Temp. 230 Degrees F

Maximum Feet of Head 31 ft

Maximum Flow Rate @ 1 Feet of Head 32 gpm

Maximum Flow Rate @ 10 Feet of Head 24 gpm

Maximum Flow Rate @ 15 Feet of Head 19 gpm

Maximum Flow Rate @ 20 Feet of Head 14 gpm

Maximum Flow Rate @ 25 Feet of Head 8 gpm

Maximum Flow Rate @ 30 Feet of Head 1 gpm

Maximum Flow Rate @ 5 Feet of Head 28 gpm

Maximum Flow Rate @ 50 Feet of Head [DELETE]

Maximum Media Temperature 230 Degrees F

Maximum Operating Pressure 150 psi

Maximum RPM 3,600 RPM

Mechanical Seal Wet Rotor

Min. GPM @ Head 0 gpm @ 31 ft

Nameplate Voltage 115V AC

Number of Flange Mounting Holes 2

Number of Intakes 2

Number of Speeds 3

Overall Height 6.5 in

Overall Length 5.5 in

Overall Width 6.75 in

Package Quantity 1

Phase Single

Phase - Pumps 1

Phase and Brand ARMSTRONG PUMPS INC. Single Phase

Pump Housing Material Stainless Steel

Pump Mount In Line

Pump Type Multi-Speed

Rotor Type Wet

RPM 3,600 RPM

Series Astro 280SS

Series Family Astro 2

Shaft Material Ceramic

Shut-Off 31 ft

Standards ETL, NSF 372

Thermal Protection yes

Voltage 115V AC

Voltage - Pumps 115V AC

Width 6 3/4 in
