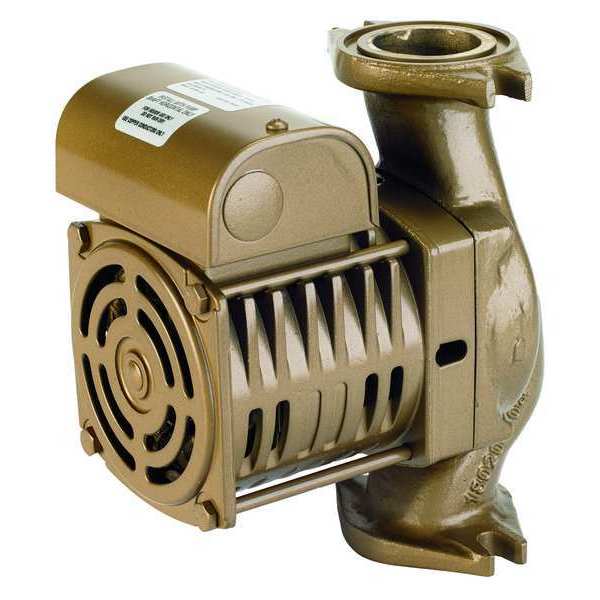

Hot Water Circulating Pump, 1/6 hp, 120v, 1 Phase, Flange Connection

Home / Hot Water Circulating Pump, 1/6 hp, 120v, 1 Phase, Flange Connection

Hot Water Circulating Pump, 1/6 hp, 120v, 1 Phase, Flange Connection

SKU
Brand Armstrong Pumps
Categories Pumps
Description Potable Water Circulating Pump, Compatible Intake Pipe Size 1 1/2 in, Connection Type Flange, Face to Face Dimension 8 1/2 in, Flange or Union Included Yes, For Use With Potable Systems Yes, Horsepower 1/6, Maximum Feet of Head 28 ft, Maximum Flow Rate @ 10 Feet of Head 32 gpm, Maximum Flow Rate @ 15 Feet of Head 26 gpm, Maximum Flow Rate @ 1 Foot of Head 42 gpm, Nameplate Voltage 120V AC, Number of Speeds 1, Phase Single, Pump Type Standard, Series Family E.2
graingerSKU: null, mscSKU: null, zoro_no: G8509751, mongo_id: 65bbe6c93aaddbd5a9052c55

Web Price

$1,143.74 / each

Qty

Product Details

Amps 2.0 A

Best Efficiency GPM @ Head 20 gpm @ 18 ft

Body Gasket Material EPDM

Compatible Intake Pipe Size 1 1/2 in

Compatible Media Type Water

Compliance cUL, Low Lead, NSF-372

Connection Style Flange

Connection Type Flange

Country of Origin (subject to change) United States

Drive Type Direct

Face to Face Dimension 8 1/2 in

Features Ball Bearing, In Line, Mechanical Seal

Flange or Union Included Yes

Flange/Union Included No

For Use With Potable Systems

For Use With Potable Systems Yes

Frequency 60 Hz

Height 8 1/2 in

Horsepower 1/6

Housing Material Bronze

Housing Material - Pumps Lead Free Bronze

HP_ 1/6 hp

HVAC Circulating Pump Type Hot Water Circulating Pump

Impeller Material Plastic

Includes (2) Gaskets, Nuts and Bolts

Inlet/Outlet Size 1-1/2 in

Length 7 1/2 in

Loop Configuration Open

Manufacturer Warranty Length 3 yr

Manufacturers Warranty Length 3 yr

Max. GPM @ Head 38 gpm @ 5 ft

Max. Operating Pressure 150 psi

Max. Temp. 230 Degrees F

Maximum Feet of Head 28 ft

Maximum Flow Rate @ 1 Feet of Head 42 gpm

Maximum Flow Rate @ 10 Feet of Head 32 gpm

Maximum Flow Rate @ 15 Feet of Head 26 gpm

Maximum Flow Rate @ 20 Feet of Head 18 gpm

Maximum Flow Rate @ 25 Feet of Head 6 gpm

Maximum Flow Rate @ 5 Feet of Head 38 gpm

Maximum Flow Rate @ 50 Feet of Head [DELETE]

Maximum Media Temperature 230 Degrees F

Maximum Operating Pressure 150 psi

Maximum RPM 3,300 RPM

Mechanical Seal Silicon Carbide Enviroseal Coupled with Viton(R) Elastomer

Min. GPM @ Head 0 gpm @ 27 ft

Minimum Media Temperature 32 Degrees F

Nameplate Voltage 120V AC

Number of Flange Mounting Holes 2

Number of Intakes 2

Number of Speeds 1

Overall Height 8.5 in

Overall Length 7.5 in

Overall Width 4.2 in

Package Quantity 1

Phase Single

Phase - Pumps 1

Phase and Brand ARMSTRONG PUMPS INC. Single Phase

Pump Housing Material Bronze

Pump Mount In Line

Pump Type Standard

RPM 3,300 RPM

Series E10.2B

Series Family E.2

Shaft Material Stainless Steel

Shut-Off 27 ft

Standards NSF-372

Thermal Protection yes

Voltage 115V AC

Voltage - Pumps 115V AC

Width 4 1/4 in
