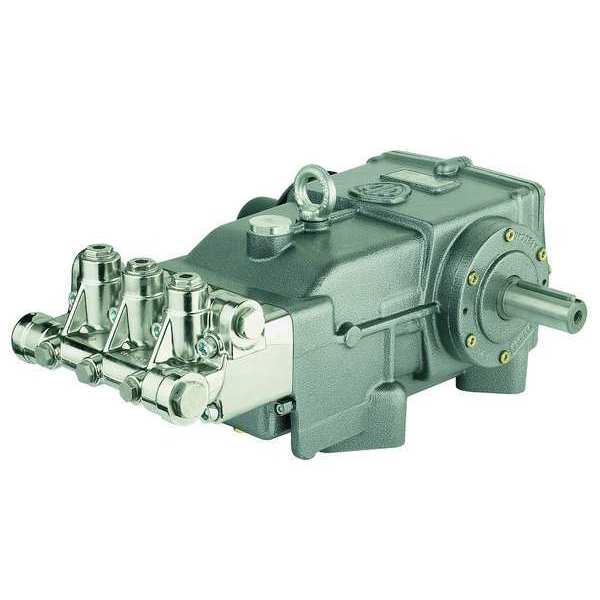

Pressure Washer Pump, 7.9 GPM, 3/4F x 1/2F

Home / Pressure Washer Pump, 7.9 GPM, 3/4F x 1/2F

Pressure Washer Pump, 7.9 GPM, 3/4F x 1/2F

SKU
Brand A.R. North America
Categories Pumps
Description Pressure Plunger Pump, Discharge Connection Size 1/2 in, Discharge Connection Type BSP, Discharge Pressure (Maximum) 7,250 psi, Flow Rate (Maximum) 7.9 gpm, Intake Connection Size 3/4 in, Intake Connection Type BSP, Motor Speed (Maximum) 1,000 RPM, Piston Design Triplex, Pump Head Material Forged Brass, Plunger Material Stainless Steel, Required Electric Motor Horsepower (Maximum) 27 1/10 hp, Required Gasoline Engine Horsepower (Maximum) 39 3/10 hp, Lubrication Oil Bath
graingerSKU: null, mscSKU: null, zoro_no: G1592735, mongo_id: 65bbe5ea3aaddbd5a9ff5080

Web Price

$6,449.99 / each

Qty

Product Details

Application High Pressure Water Applications, Including Car Wash, Pressure Wash, Sewer Jetting and Cooling Misting

Bearing Type Roller

Bearings Roller

Connecting Rod Bronze

Connecting Rod Material Bronze

Country of Origin (subject to change) Italy

Crankcase Cast Iron

Crankcase Material Cast Iron

Crankshaft Hardened Steel

Crankshaft Material Hardened Steel

Discharge Connection Size 1/2 in

Discharge Connection Type BSP

Discharge Port 1/2 in BSP

Discharge Port (In.) 1/2 Degrees F

Discharge Pressure (Maximum) 7,250 psi

Discharge Pressure (PSI) 7,250

Drive Type Belt-Drive

Driver Type Electric Motor or Gasoline Engine

Flange Type Horizontal Plunger Pump

Flow Capacity (GPM) 7.9

Flow Rate (Maximum) 7.9 gpm

Flow Rate (Minimum) 0.79 gpm

Height (In.) 9.1 in

HP Required @ 1000 PSI 5.4 hp

HP Required @ 1500 PSI 8.1 hp

HP Required @ 2000 PSI 10.8 hp

HP Required @ 2500 PSI 13.6 hp

HP Required @ 3000 PSI 16.3 hp

HP Required @ 3500 PSI 19.0 hp

HP Required @ 4000 PSI 21.7 hp

HP Required @ 500 PSI 2.7 hp

HP Required @ 5000 PSI 27.1 hp

Hydraulic Motor Flow Rate (Maximum) Not Applicable

Hydraulic Motor Pressure @ 1000 psi Not Applicable

Hydraulic Motor Pressure @ 1500 psi Not Applicable

Hydraulic Motor Pressure @ 2000 psi Not Applicable

Hydraulic Motor Pressure @ 2500 psi Not Applicable

Hydraulic Motor Pressure @ 3000 psi Not Applicable

Hydraulic Motor Pressure @ 500 psi Not Applicable

Inlet Port (In.) 3/4 F

Intake Connection Size 3/4 in

Intake Connection Type BSP

Length (In.) 22.7 in

Lubrication Oil Bath

Manifold Material Forged Brass

Max. Fluid Temp. (F) 140

Max. Inlet Pressure (PSI) 50

Media Temperature (Maximum) 140 Degrees F

Motor Speed (Maximum) 1,000 RPM

Number of Pistons 3

Operating Pressure (Maximum) 7,520 psi

Overall Height 9.1 in

Overall Length 22.7 in

Overall Width 18.1 in

Package Quantity 1

Piston Design Triplex

Plunger SST

Plunger Material Stainless Steel

Pump Head Forged Brass

Pump Head Material Forged Brass

Required Electric Motor Horsepower (Maximum) 27 1/10 hp

Required Gasoline Engine Horsepower (Maximum) 39 3/10 hp

RPM 1,000 RPM

Seal W-1 & W-2

Seal Type Mechanical Type 1, Mechanical Type 2

Shaft 35 mm Solid

Shaft Dia. 35 mm

Shaft Outer Diameter 35 mm

Shaft Type Solid

Suction Port 3/4 in BSP

Type Belt-Drive

Width (In.) 18.1 in
