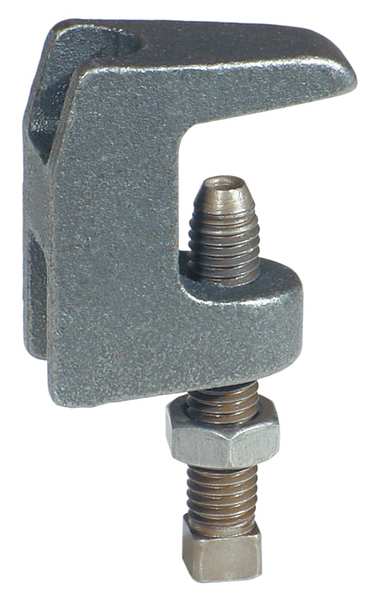

Wide Mouth Beam Clamp, Rod Sz 3/8 In

SKU
Brand Anvil
Categories Raw Materials
Description Wide Mouth Beam Clamp, Beam Clamp Type C-Clamp, Beam Mount Location Bottom, Top, Clamp Length 1.75 in, Clamp Material Ductile Iron, Clamp Material Finish Zinc-Plated, Clamp Width 0.81 in, For Beam Shape/Type H-Beam, For Threaded Rod Size 3/8 in, Includes Locknut Yes, Installation Torque 60 in-lb, Load Capacity 500 lb, Throat Depth 1 1/4 in
graingerSKU: 4HYE8, mscSKU: , zoro_no: G1997326, mongo_id: 65bbe9bf22d7a989a997569f

Web Price

$8.11 / each

Qty

Product Details

Beam Clamp Type C-Clamp

Beam Mount Location Bottom, Top

Clamp Length 1.75 in

Clamp Material Ductile Iron

Clamp Material Finish Zinc-Plated

Clamp Width 0.81 in

Country of Origin (subject to change) China

Description/Special Features For Use Under Roof Installations With Bar Joist Type Construction Or For Attachment To The Top Or Bottom Flange Of Structural Shapes Where The Vertical Hanger Rod Is Required To Be Offset From The Edge Of The Flange And Where The Thickness Of Joist Or Flange Does Not Exceed 1 1/4 in

Features Wider Throat for Attaching to Flange with upto 1 1/4 in Thickness

Finish Zinc Plated

For Beam Shape/Type H-Beam

For Threaded Rod Size 3/8 in

Includes Set Screw And Locknut

Includes Locknut Yes

Installation Torque 60 in-lb

Length (In.) 1 3/4 in

Load Capacity 500 lb

Material Ductile Iron

Max. Load (Lb.) 250 at Bottom, 500 at Top

Metal Detectable Yes
