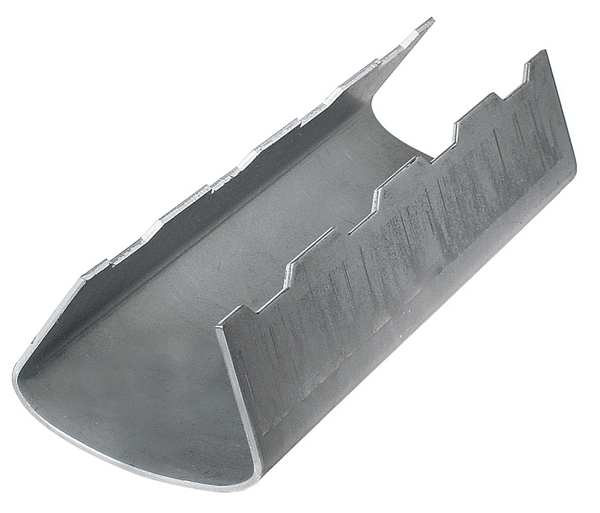

Pipe Covering Protection Saddle, 3 To 5In

SKU
Brand Anvil
Categories
Description Pipe Protection Saddle, Finish Not Applicable, For Insulation Outside Diameter 3.5 in, Insulation Thickness Range 2-1/2 in, Load Capacity 1,200 lb, Material Steel, Maximum Operating Temperature 650 Degrees F, Mount Type Roller, Overall Length 12 in, For Pipe Size 3 in to 5 in, Standards ANSI/MSS SP-69, Federal Specification A-A-1192A, Type 39A, Federal Specification A-A-1192A, Type 39B, MSS SP-58, Type 39A, MSS SP-58, Type 39B, WW-H-171-E, Type 40A, WW-H-171-E, Type 40B
graingerSKU: 4LUZ9, mscSKU: , zoro_no: G3377141, mongo_id: 65bbe7439a749db82272b8df

Web Price

$34.11 / each

Qty

Product Details

Application Insulated High Temperature Systems

Country of Origin (subject to change) United States

Features Weather Tight Covering

For Insulation Outside Diameter 3.5 in

For Pipe Size 3 in to 5 in

Insulation Thickness 2-1/2 in

Insulation Thickness Range 2-1/2 in

Length 12 in

Load Capacity 1,200 lb

Material Carbon Steel

Material of Construction Steel

Max. Load (Lb.) 1,200

Maximum Operating Temperature 650 Degrees F

Mount Type Roller

Overall Length 12 in

Package Quantity 1

Pipe Size 3 to 5 in

Product Type Pipe Covering Protection Saddle

Standards ANSI/MSS SP-69, Federal Specification A-A-1192A, Type 39A, Federal Specification A-A-1192A, Type 39B, MSS SP-58, Type 39A, MSS SP-58, Type 39B, WW-H-171-E, Type 40A, WW-H-171-E, Type 40B

Standards and Approvals A-A-1192A (Type 39A & 39B), ANSI/MSS SP-69, MSS SP-5 (Type 39A & 39B), WW-H-171-E (Type 40A&40B)
