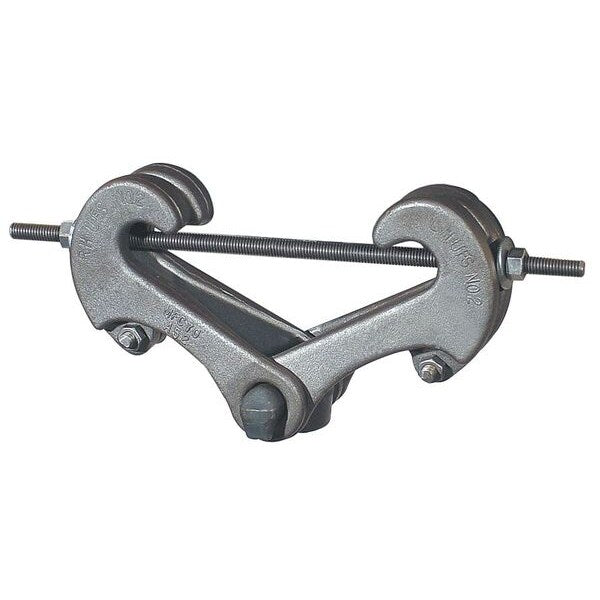

Beam Clamp, Rod Sz1-1/2", Forged Steel

Home / Beam Clamp, Rod Sz1-1/2", Forged Steel

Beam Clamp, Rod Sz1-1/2", Forged Steel

SKU
Brand Anvil
Categories Raw Materials
Description Beam Clamp, Beam Clamp Type Universal Clamp, Beam Mount Location Bottom Center, Clamp Length Not Applicable, Clamp Material Forged Steel, Clamp Material Finish Not Applicable, For Beam Shape/Type H-Beam, For Threaded Rod Size 3/8 in, Includes Locknut Yes, Load Capacity 11,500 lb, For Maximum Beam Width 10 in, Includes Threaded Rod Yes, Standards ANSI/MSS SP-69, Type 28, A-A-1192A, Type 28, MSS SP-58, Type 28, WW-H-171-E, Type 30, WW-H-171-E, Type 31
graingerSKU: 4HYR6, mscSKU: , zoro_no: G1803277, mongo_id: 65bbe8479a749db822781ff0

Web Price

$452.49 / each

Qty

Product Details

Beam Clamp Type Universal Clamp

Beam Mount Location Bottom Center

Beam Width 4 to 10 in

Clamp Length Not Applicable

Clamp Material Forged Steel

Clamp Material Finish Not Applicable

Country of Origin (subject to change) China

Description/Special Features For Suspension Of Heavy Loads From Beams With Flange Widths To 15 in And Flange Thickness To 1.031 in.

Features Tight Non-Slip Fit to the Beam

Finish Plain

For Beam Shape/Type H-Beam

For Beam Width 4 in - 10 in

For Maximum Beam Width 10 in

For Minimum Beam Width 4 in

For Suspending Tie Rod

For Threaded Rod Size 3/8 in

Includes Locknut Yes

Includes Threaded Rod Yes

Load Capacity 11,500 lb

Material Forged steel

Max. Load (Lb.) 11,500

Metal Detectable Yes

Nominal Conduit/Pipe 1-1/2

Package Quantity 1

Rod Size 1 1/2

Standards Federal Specification A-A-1192A (Type 28 without links; Type 29 with links), WW-H-171-E (Type 30 & 31), ANSI/MSS SP-69 and ANSI/MSS SP-58 (Type 28 without links; Type 29 with links).

Sub-Category Clamps
