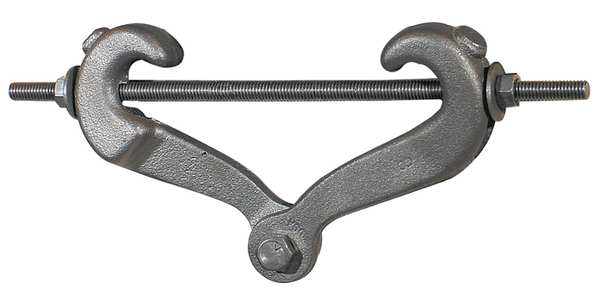

Beam Clamp, Rod Sz 7/8 In, Malleable Iron

Home / Beam Clamp, Rod Sz 7/8 In, Malleable Iron

Beam Clamp, Rod Sz 7/8 In, Malleable Iron

SKU
Brand Anvil
Categories Raw Materials
Description Beam Clamp, Beam Clamp Type Tong Style, Beam Mount Location Bottom Center, Clamp Length 2.38 in, Clamp Material Malleable Iron, Clamp Material Finish Not Applicable, For Beam Shape/Type H-Beam, For Threaded Rod Size 7/8 in, Includes Locknut Yes, Load Capacity 1,365 lb, For Maximum Beam Width 7 in, Standards ANSI/MSS SP-69, Type 30, cUL Listed, A-A-1192A, Type 30, FM Approved, MSS SP-58, Type 30, UL Listed, WW-H-171-E, Type 30, Bolt Diameter 7/16 in
graingerSKU: 4HYR2, mscSKU: , zoro_no: G2673386, mongo_id: 65bbe7c83aaddbd5a90b69a9

Web Price

$34.99 / each

Qty

Product Details

Beam Clamp Type Tong Style

Beam Mount Location Bottom Center

Beam Width 2 3/8 to 7 in

Bolt Diameter 7/16 in

Bolt Size (In.) 7/16

Clamp Length 2.38 in

Clamp Material Malleable Iron

Clamp Material Finish Not Applicable

Country of Origin (subject to change) United States

Description/Special Features For Attachment To Structural Steel. Use In Conjunction With Beams Where Beam Widths Are From 2 3/8 in Minimum To 7 in Maximum And Flange Thickness Does Not Exceed 0.60 in

Features Hanger Rod can Swing from Vertical Providing Flexibility at the Beam Clamp, Proper Fit for All Beam Sizes

For Beam Shape/Type H-Beam

For Beam Width 2 3/8 in - 7 in

For Maximum Beam Width 7 in

For Minimum Beam Width 2 3/8 in

For Threaded Rod Size 7/8 in

Includes Nuts and Washer

Includes Locknut Yes

Load Capacity 1,365 lb

Material Malleable Iron

Max. Load (Lb.) 1,365

Metal Detectable Yes
