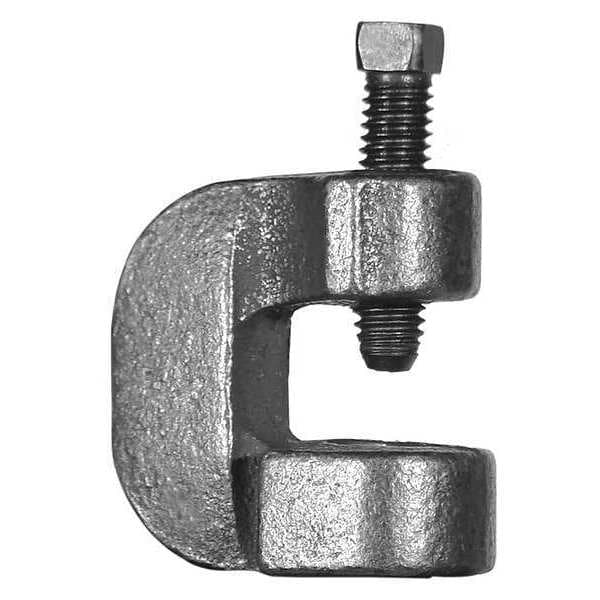

Beam Clamp, Rod Sz 3/8 In, Malleable Iron

Home / Beam Clamp, Rod Sz 3/8 In, Malleable Iron

Beam Clamp, Rod Sz 3/8 In, Malleable Iron

SKU
Brand Anvil
Categories Raw Materials
Description Beam Clamp, Beam Clamp Type C-Clamp, Beam Mount Location Bottom, Clamp Length 1.75 in, Clamp Material Malleable Iron, Clamp Material Finish Not Applicable, For Beam Shape/Type H-Beam, For Threaded Rod Size 3/8 in, Installation Torque 60 in-lb, Load Capacity 400 lb, Throat Depth 3/4 in, For Maximum Beam Thickness 3/4 in, Standards ANSI/MSS SP-69, Type 23, cUL Listed, A-A-1192A, Type 23, FM Approved, MSS SP-58, Type 23, UL Listed, WW-H-171-E, Type 23
graingerSKU: 4HYF7, mscSKU: 36986818, zoro_no: G2502132, mongo_id: 65bbe8bc22d7a989a9910dc7

Web Price

$4.86 / each

Qty

Product Details

Beam Clamp Type C-Clamp

Beam Mount Location Bottom

Clamp Length 1.75 in

Clamp Material Malleable Iron

Clamp Material Finish Not Applicable

Country of Origin (subject to change) United States

Description/Special Features For Attachment to W and M Beams

Features Ribbed Clamp, Thread Engagement

Finish Plain

For Beam Shape/Type H-Beam

For Beam Thickness 5/8 in - 3/4 in

For Maximum Beam Thickness 3/4 in

For Minimum Beam Thickness 5/8 in

For Threaded Rod Size 3/8 in

Includes Set Screw

Installation Torque 60 in-lb

Length (In.) 1 3/4 in

Load Capacity 400 lb

Material Malleable Iron

Max. Load (Lb.) 400

Metal Detectable Yes

Nominal Conduit/Pipe 3/8

Package Quantity 1

Rod Size 3/8

Standards Federal Specification A-A-1192A (Type 23), WW-H-171-E (Type 23), ANSI/MSS SP-69, and ANSI/MSS SP-58 (Type 23). UL, ULC Listed (Sizes 3/8 in , 1/2 in , and3/4 in) and FM Approved (Sizes 3/8 in).

Sub-Category Clamps

Throat Depth 3/4 in

Type C-Clamp
