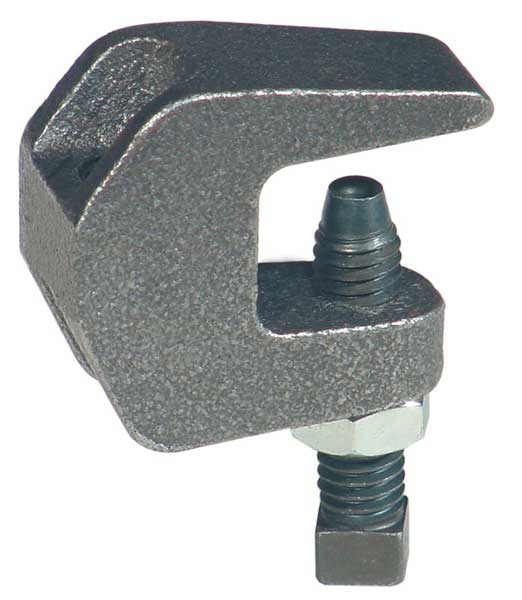

Beam Clamp, Rod Sz 3/8 In, Ductile Iron

Home / Beam Clamp, Rod Sz 3/8 In, Ductile Iron

Beam Clamp, Rod Sz 3/8 In, Ductile Iron

SKU
Brand Anvil
Categories Raw Materials
Description Beam Clamp, Beam Clamp Type C-Clamp, Beam Mount Location Bottom, Top, Clamp Length 1.81 in, Clamp Material Ductile Iron, Clamp Material Finish Galvanized, Clamp Width 0.81 in, For Beam Shape/Type H-Beam, For Threaded Rod Size 3/8 in, Includes Locknut Yes, Installation Torque 60 in-lb, Load Capacity 500 lb, Throat Depth 3/4 in
graingerSKU: 4HYE5, mscSKU: 36986834, zoro_no: G1416651, mongo_id: 65bbe5923aaddbd5a9fd1160

Web Price

$7.44 / each

Qty

Product Details

Beam Clamp Type C-Clamp

Beam Mount Location Bottom, Top

Clamp Length 1.81 in

Clamp Material Ductile Iron

Clamp Material Finish Galvanized

Clamp Width 0.81 in

Country of Origin (subject to change) United States

Description/Special Features For Use Under Roof Install w/Bar Joist Type Const Or For Attachment To The Top Or Bottom Flange Of Structural Shapes. Where The Vertical Hanger Rod Is Req To Be Offset From The Edge Of The Flange. The Thickness Of Joist Or Flange Does Not Exceed 3/4 in

Finish Plain

For Beam Shape/Type H-Beam

For Threaded Rod Size 3/8 in

Includes Set Screw And Locknut

Includes Locknut Yes

Installation Torque 60 in-lb

Length (In.) 1 9/16 in

Load Capacity 500 lb

Material Ductile Iron

Max. Load (Lb.) 250 at Bottom, 500 at Top

Metal Detectable Yes

Nominal Conduit/Pipe 3/8

Package Quantity 1

Rod Size 3/8

Standards and ANSI/MSS SP-58 (Type 19 & 23). UL, ANSI/MSS SP-69, Federal Specification A-A-1192A (Type 19 & 23), ULC Listed and FM Approved., WW-H-171-E (Type 23)

Sub-Category Clamps

Thread Size (In.) 3/8-16

Throat Depth 3/4 in

Type C-Type
