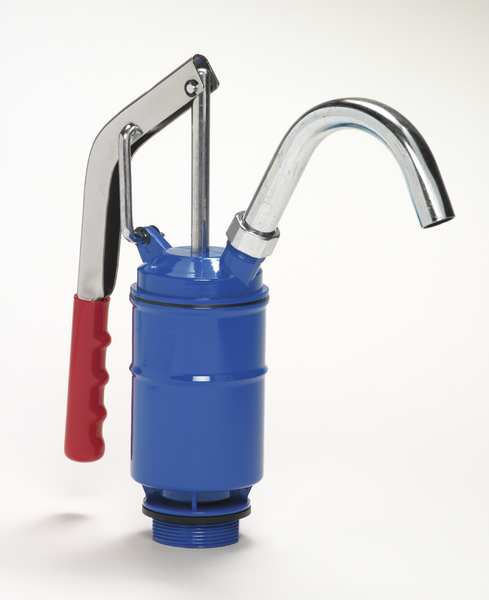

Hand Drum Pump, Lever, Die Cast, 2In OD

Home / Hand Drum Pump, Lever, Die Cast, 2In OD

Hand Drum Pump, Lever, Die Cast, 2In OD

SKU
Brand Action Pump
Categories Pumps
Description Hand Operated Drum Pump, Max. Outlet Pressure 8 psi, Spout Connection Size 55/64 in, Self-Priming Yes, Metered No, Includes Discharge Hose No, Piston Material Polyethylene, Features High Angle Discharge Spout, Self-Priming, Telescoping Intake Tube, Seal Material Neoprene, For Use With For Viscous Liquids, Motor Oil, Cutting Oil, Paraffin, Adapter Connection Type MNPT, For Container Type Bucket, Drum, Pail, Includes Bung Adapter Yes, Includes Nozzle No, Includes Spout Yes, Runs Dry Yes
graingerSKU: 3KUK8, mscSKU: , zoro_no: G4107835, mongo_id: 65bbe8fd22d7a989a9929ce6

Web Price

$91.61 / each

Qty

Product Details

Action Type Lever

Adapter Connection Type MNPT

Adapter Dia. 2

Adapter Material Zinc Alloy

Adapter Type Bung

Application For Viscous Liquids, Motor Oil, Cutting Oil, Paraffin

Bung Connection Dia. 2 in

Compatible Chemicals Ammonia (Liquids), Ethyl (Ethanol), Ethylene Glycol, Glycerin, Heptane, Methyl (Methanol)

Country of Origin (subject to change) Taiwan, Province of China

Diesel Exhaust Fluid Compatible No

Discharge Tube Length 6

Discharge Tube Outlet ID 3/4 in

Discharge Tube Outlet ID Size 7/8

Discharge Tube Outlet OD 7/8 in

Discharge Tube Outlet OD Size 3/4

Discharge Tubing Material Steel

Features High Angle Discharge Spout, Self-Priming, Telescoping Intake Tube

Food Grade No

For Container Size 15 gal, 30 gal, 55 gal

For Container Type Bucket, Drum, Pail

For Media Type Ammonia, Ethanol, Ethylene Glycol, Glycerin, Heptane, Methanol

For Use With For Viscous Liquids, Motor Oil, Cutting Oil, Paraffin

Gasket Material Polyethylene

Gear Lube NT

GPM 5

Grease NT

Height Above Container 11 in

Housing Material Die Cast Zinc

Housing Material - Pumps Aluminum

Includes Bung Adapter Build in

Includes Bung Adapter Yes

Includes Discharge Hose No

Includes Nozzle No

Includes Spout Yes

Includes Suction Tube Yes

Inlet Size 1/2

Manufacturers Warranty Length 1 yr.

Max. Flow Rate 16 oz per stroke

Max. Fluid Temp. 140 Degrees F

Max. GPM for Water 5

Max. Head 3 ft.

Max. Head - Pumps 3 ft

Max. Head Pressure 3 psi

Max. Liquid Temp. 140 Degrees F

Max. Outlet Pressure 8 psi

Max. Temp. 140 Degrees F

Max. Viscosity 4,000 cps

Metered No

Min. Operating Temp. 35 Degrees F

Not Recommended Chemicals Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%)

Ounces per Stroke 16 oz.

Outlet Size 7/8

Overall Length 55

Package Quantity 1

Piston Material Polyethylene

Power Source Hand Operated

Runs Dry Yes

Seal Material Neoprene

Self-Priming Yes

Spout Connection Size 55/64 in

Spout Length 8 in

Spout Material Steel
