Female Disconnect, Bare, 12-10AWG, PK500

SKU
Brand 3M
Categories
Description Female Disconnect, Contact Finish Tin, Contact Material Brass, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 347 Degrees F, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.128 in, Barrel Size Standard
graingerSKU: 2DRJ3, mscSKU: , zoro_no: G5574326, mongo_id: 65bbe6613aaddbd5a9027303

Web Price

$289.99 / each

Qty

Product Details

Barrel Inside Dia. 0.12 in

Barrel Inside Diameter 0.128 in

Barrel Length 0.25 in

Barrel Size Standard

Barrel Style Interlocking

Connection Material Brass

Connection Type Crimp

Contact Finish Tin

Contact Material Brass

Country of Origin (subject to change) United States

Disconnect Type Female

Fastener Orientation Female

For Wire Size 10 AWG, 12 AWG

Insulation None

Insulation Color Bare

Insulation Coverage None

Insulation Material None

Insulation Type Non-Insulated

Mates with Female Width 0.25 in

Mates with Male Tab Width (W') 0.25 in

Max. Temp. 347 Degrees F

Max. Voltage 600 V

Maximum Operating Temperature 347 Degrees F

Maximum Voltage 600 V

Maximum Wire Size 10 AWG

Minimum Operating Temperature 347 Degrees F

Minimum Wire Size 12 AWG

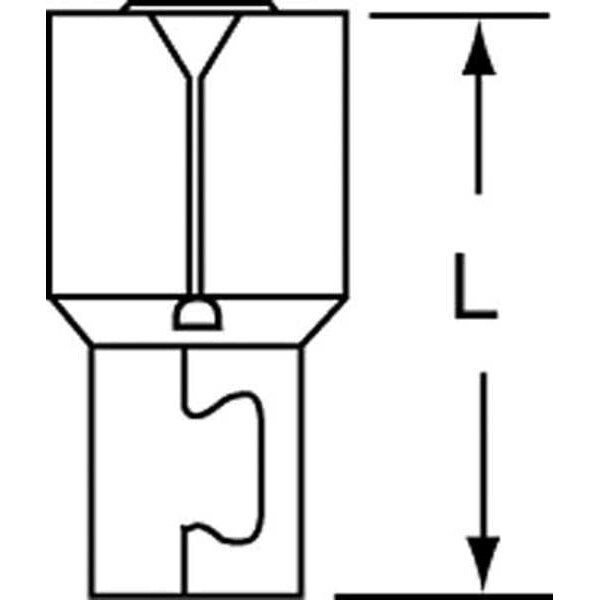

Overall Length 0.64 in

Package Quantity 500

RoHS Compliant Yes

Seam Brazed

Seam Style Butted

Special Features Allows for Quick and Easy Disconnect of Wires, Dents and Rolled Edges of this Female Disconnect Terminal Offer Excellent Holding Force

Standards CSA Certified, UL Listed

Tab Size 0.032 in x 0.250 in

Tab Thickness 0.032 in

Tab Width 0.25 in

Terminal Type Socket

Terminal Types Female Socket

Termination Style Crimp

Wire Range 12 to 10 AWG

Wire Size Range 12 AWG - 10 AWG
